    Halogen Free Insulation Polyolefin Heat Shrink Tubing Without Adhesive UL Approval

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-RSFR-125H
    Certification : UL, RoHS, REACH
    Price : USD 0.05 ~ 3.69 / M
    Payment Terms : L/C, T/T, MoneyGram, Western Union
    Supply Ability : 5000000 mts / month
    Delivery Time : about 5~9 working days
    • Product Details
    • Company Profile

    Halogen Free Insulation Polyolefin Heat Shrink Tubing Without Adhesive UL Approval

    Halogen Free Insulation Polyolefin Heat Shrink Tubing Without Adhesive UL Approval


    1. Description of goods

    Polyolefin heat shrink tube is developed environment-friendly flame retardant heat shrinkable tube, using specially designed formulation of high polymers, through cross-link by electronic accelerator and continuous expansion.

    Operating temperature:-45ºC~125ºC


    2. Characteristics

    1). Environment-friendly, flexibility, flame retardant, non-smoke, non-toxic, quick shrink and stable characteristics ;

    2). Rated temperature:-45ºC~125ºC ;

    3). Shrink temperature:84ºC~120ºC ;

    4). Shrink ratio: 2:1

    5). Flame Retardant Rating: UL224 VW-1 ;

    6). Environmental protection standard: ROHS;

    7). Standard color: Black .


    3. Range of application

    Usage: electrical insulation, welding point anti-corrosion, mechanical protection.

    Application range:Electronics, communication, automobiles, shipping and other manufacturing range.


    4. Specification

    PropertyUnitTest MethodStandard
    Tensile StrengthMPA≥10.4(before aging)GB/T 1040
    ≥7.3(after aging)158ºC*168h
    Breakage Elongation (%)%≥200(before aging)GB/T 1040
    ≥100(after aging)158ºC*168h
    Heat Shock-no sticking & no cracking250ºC*4h
    Cold Blend-no cracking-30ºC*4h
    Breakdown StrengthKV/mm≥15GB/T 1408
    Dielectric Withstand600V-Passno breakdown for 2500V, 60s
    300V-Passno breakdown for 1500V,60s
    Volume ResistivityΩ. cm≥1×1014GB/T 1410
    Corrosion Performance-pass158ºC*168h
    Copper Stability-pass158ºC*168h
    Flammability-passVW-1

    5. Dimension

    Inner
    Diameter
    As Supplied(mm)After Recovery(mm)Standard PackageApplication Range(mm)
    Inner DiameterWall ThicknessInner DiameterWall Thickness(m/spool)
    Φ0.60.9±0.20.20±0.05≤0.400.33±0.104000.4~0.7
    Φ0.81.1±0.20.20±0.05≤0.500.33±0.104000.6~0.8
    Φ1.01.5±0.20.20±0.05≤0.650.36±0.104000.75~0.9
    Φ1.52.0±0.20.20±0.05≤0.850.36±0.104000.95~1.4
    Φ2.02.5±0.20.23±0.05≤1.000.45±0.104001.1~1.8
    Φ2.53.0±0.20.23±0.05≤1.300.45±0.104001.35~2.3
    Φ3.03.5±0.20.23±0.05≤1.500.45±0.104001.6~2.7
    Φ3.54.0±0.20.23±0.05≤1.800.45±0.104001.85~3.2
    Φ4.04.5±0.20.25±0.05≤2.000.45±0.104002.1~3.6
    Φ4.55.0±0.20.28±0.05≤2.300.56±0.102002.35~4.0
    Φ5.05.5±0.20.28±0.05≤2.500.56±0.102002.6~4.5
    Φ6.06.5±0.20.28±0.05≤3.000.56±0.102003.1~5.4
    Φ7.07.5±0.30.28±0.05≤3.500.56±0.101003.7~6.3
    Φ8.08.5±0.30.30±0.08≤4.000.56±0.101004.2~7.2
    Φ9.09.5±0.30.30±0.08≤4.500.56±0.101004.7~8.0
    Φ1010.5±0.30.30±0.08≤5.000.56±0.101005.2~9.0
    Φ1111.5±0.30.30±0.08≤5.500.56±0.101005.7~10
    Φ1212.5±0.30.30±0.08≤6.000.56±0.101006.2~11
    Φ1313.5±0.30.30±0.08≤6.500.56±0.101006.7~12
    Φ1414.5±0.30.35±0.10≤7.000.70±0.101007.3~13
    Φ1515.5±0.40.35±0.10≤7.500.70±0.101007.8~14
    Φ1616.5±0.40.35±0.10≤8.000.70±0.101008.3~15
    Φ1717.5±0.40.35±0.10≤8.500.70±0.101008.8~16
    Φ1819.0±0.50.35±0.10≤9.000.70±0.101009.3~17
    Φ2022.0±0.50.35±0.10≤10.000.83±0.1510010.4~19
    Φ2224.0±0.50.40±0.12≤11.000.83±0.1510011.4~21
    Φ2526.0±0.50.40±0.12≤12.500.90±0.155012.8~24
    Φ2829.0±0.50.45±0.12≤14.000.90±0.155014.4~29
    Φ3031.5±1.00.45±0.12≤15.001.00±0.155016~29
    Φ3536.5±1.00.45±0.12≤17.501.00±0.155018~34
    Φ4041.5±1.00.45±0.12≤20.001.00±0.155021~39
    Φ4546.5±1.00.50±0.15≤22.51.00±0.152523.5~44
    Φ50≥500.50±0.15≤25.01.10±0.152526~49
    Φ60≥600.60±0.15≤30.01.20±0.152535~55
    Φ70≥700.65±0.15≤35.01.30±0.202540~65
    Φ80≥800.65±0.15≤40.01.30±0.202545~75
    Φ90≥900.65±0.15≤45.01.30±0.202550~85
    Φ100≥1000.65±0.20≤50.01.30±0.202555~95
    Φ120≥1200.65±0.20≤60.01.30±0.202565~115
    Φ150≥1500.65±0.20≤70.01.30±0.202580~145
    Φ180≥1800.65±0.30≤90.01.30±0.302595~175
    Φ210≥2100.65±0.30≤105.01.30±0.3025110~205
    Φ230≥2300.65±0.30≤115.01.30±0.3025120~225
    Φ250≥2500.65±0.30≤125.01.30±0.3025130~240

    6. Color
    Standard color is black (Other color available upon request.)

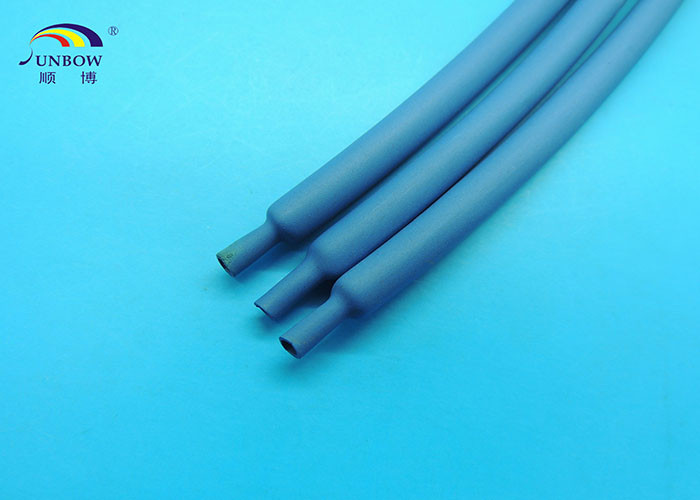

    7. Pictures of goods

    Halogen Free Insulation Polyolefin Heat Shrink Tubing Without Adhesive UL ApprovalHalogen Free Insulation Polyolefin Heat Shrink Tubing Without Adhesive UL ApprovalHalogen Free Insulation Polyolefin Heat Shrink Tubing Without Adhesive UL Approval


    8. Company information
    Founded in Oct. 2003, Sunbow is a top leading ISO and TS16949 factory of insulation materials.
    Approved by UL, ROHS, RACH, Its main products cover in silicone fiberglass sleeving, heat shrink tube, expandable braided sleeving, PVC tube, silicone tube, PTFE tube, wire conduit and so on. Its products are mainly for the wire harness, motors, transformers, generator and so on.
    SUNBOW is the suppier of many famous brand like TOSHIBA, ABB, SIEMENS, DAS, AUTO, TOYOTO, SAMSUNG, HUAWEI. CRRC and so on.
    UL file Number:
    UZIQ2: E333178 for silicone fiberglass sleeving range from 1.2KV to 4.0KV
    UZFT2: E333177 for silicone fiberglass sleeving 7.0KV.
    YDPU2: E360625 for extruded silicone tubing and Heat shrink tube
    YDQS2: E467953 for extruded PVC tubing
