    Adhesive lined 3:1& 4:1 Dual wall heat shrink tube with hot melt glue

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-SBRS-3XG
    Certification : UL(UL No.: E360625), RoHS, Reach, TS16949
    Price : US$0.35/M - US$15.56/M
    Payment Terms : T/T, PayPal 100% in advance
    Supply Ability : 9000000 M/Year
    • Product Details
    • Company Profile

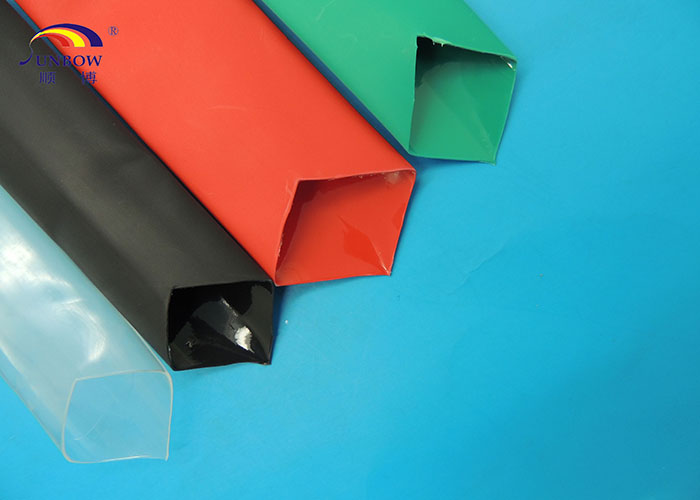

    Adhesive lined 3:1& 4:1 Dual wall heat shrink tube with hot melt glue

    Adhesive lined 3:1& 4:1 Dual wall heat shrink tube with hot melt glue


    Model Number: SB-SBRS-(3X)G

    Working temperature: -45ºC ~ 125ºC

    Shrink temperature: 70ºC ~ 125ºC

    Shrink ratio: 3:1


    Structure:

    Dual Wall Adhesive-lined Polyolefin Heat Shrinkable Tubing for Automotive and Marine Wire Harness adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.


    Usage:

    Dual Wall Adhesive-lined Polyolefin Heat Shrinkable Tubing for Automotive and Marine Wire Harness with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire spices, breakouts, and connector-to-cable transitions.


    Standards:

    Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4


    Dimension:

    Inner Diameter

    As Supplied(mm)

    ID

    After Recovery(mm)

    Standard Package

    (m/roll)

    (mm)(inch)IDWhole Wall ThicknessAdhesive Thickness
    Φ2.43/32≥2.4≤0.800.85±0.150.40±0.10200
    Φ3.21/8≥3.2≤1.000.95±0.150.40±0.10200
    Φ4.83/16≥4.8≤1.601.10±0.150.40±0.10100
    Φ6.41/4≥6.4≤2.201.20±0.150.45±0.10100
    Φ7.95/16≥7.9≤2.701.35±0.150.50±0.10100
    Φ9.53/8≥9.5≤3.201.45±0.200.50±0.1550
    Φ12.71/2≥12.7≤4.201.70±0.200.50±0.151.22
    Φ15.05/8≥15.0≤5.201.80±0.200.55±0.151.22
    Φ19.13/4≥19.1≤6.302.00±0.200.55±0.151.22
    Φ25.41≥25.4≤8.502.10±0.250.55±0.151.22
    Φ30.01-1/4≥30.0≤10.202.20±0.250.60±0.151.22
    Φ39.01-1/2≥39.0≤13.502.40±0.250.60±0.151.22
    Φ50.02≥50.0≤17.002.70±0.250.80±0.151.22
    Φ64.02-1/2≥64.0≤21.003.00±0.300.80±0.201.22
    Φ76.03≥76.0≤25.003.00±0.301.00±0.201.22
    Φ90.03-1/2≥90.0≤30.003.00±0.301.00±0.201.22
    Φ1004≥100≤34.003.00±0.301.00±0.201.22
    Φ1255≥125≤42.003.00±0.301.00±0.151.22

    Technical data:

    PropertyTest MethodStandard
    Tensile Strength(MPa)ASTM D2671≥10.4
    ElongationASTM D2671≥300
    Tensile Strength after Aging(MPa)UL224 158℃*168hrs≥7.3
    Elongation after Aging(MPa)UL224 158℃*168hrs≥200
    Dielectric Strength(KV/MM)IEC243≥15
    Volume Resistivity(Ω.cm)ASTM D876≥1*1014

    Hot melt adhesive property:

    PropertyTest MethodStandard
    Water AbsorptionASTM D570≤0.2%
    Softening PointASTM E895℃
    Strength of Pearing(PE)ASTM D 1000120N/25mm
    Strength of Pearing(AL)ASTM D 100080N/25mm

    Package:

    2.4MM - 3.2MM, 200 M/Spool;

    4.8MM - 7.9MM, 100 M/Spool:

    9.5MM, 50M/Spool;

    12.7MM - 125MM 1.22 M/PC.


    Sunbow profile:

    In 2003, Shenzhen Sunbow Insulation Materials MFG. Co., Ltd was established in the area which is running with time. Our company covers over 10000 square meters and is mainly engaged in researching, developing, producing and selling various insulation materials. With excellent sense of innovation and industry-leading technology, we’ve launched fiberglass sleeving, silicone rubber tubing, PVC soft tube, all kinds of heat shrink tubes, expandable sleeving, PTFE tube, corrugated pipe, polyimide film tube etc, which are mainly used in electronics, motors, transformers, inverters, high and low voltage power equipment, electricity, telecom, automotive, new energy, railway, aerospace , petrochemical, defense and other fields.
