    Busbar Protection Polyolefin Heat Shrink Tubing Heat Shrinkable Tube 1KV, 10KV, 35KV

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-WMPG SERIES
    Certification : UL no E360625,RoHS/REACH
    Price : USD0.09-16.4 per meter
    Payment Terms : Western Union, T/T,paypal
    Supply Ability : 9,000,000 meters per month
    • Product Details
    • Company Profile

    Busbar Protection Polyolefin Heat Shrink Tubing Heat Shrinkable Tube 1KV, 10KV, 35KV

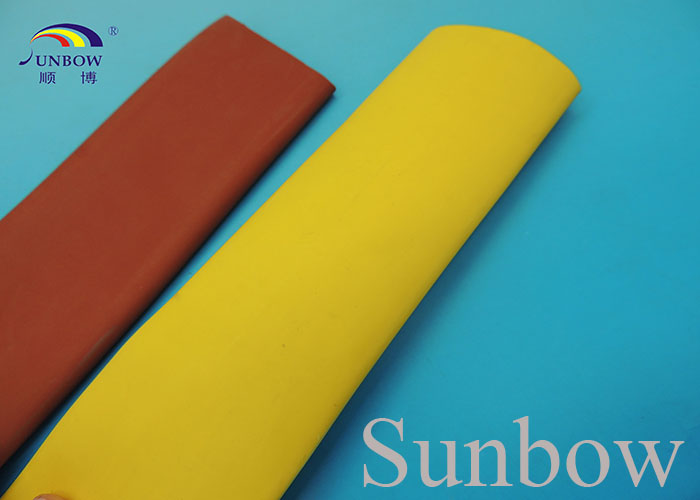

    Sunbow Busbar Protection heat Shrinkable tube Polyolefin Heat Shrink Tube 1KV, 10KV, 35KV


    Bus-bar heat shrinkable protection tube adopts cross-linked and environmental friendly polyolefin material. It restricts the hazardous substance in PBB, PBBD, PBBE and other heavy metal, and supplies high dielectric strength and voltage withstand performance. It prevents bus-bar from chemical corrosion effected by strong acid, alkali, salt etc. It also has environmental friendly, flexible, flame retardant, soft performance.

    It is mainly used in dielectric and mechanical protection, joints and terminals.

    Shrink temperature: 84ºC ~ 125ºC

    Environmental, flexible, flame retardant, soft


    Property

    Unit

    Standard

    Test Method

    Tensile Strength

    MPA

    ≥10.4(Before Aging)

    GB/T 1040

    130ºC *168hrs

    ≥7.3(After Aging)

    Elongation

    %

    ≥300(Before Aging)

    GB/T 1040; GB/T7141

    130ºC*168hrs

    ≥100(After Aging)

    Heat Shock

    -

    No Sticking; No Cracking

    JB 7829appendixD.(160ºC*4hrs)

    Cold Blend

    -

    No Cracking

    -30ºC*4hrs

    Breakdown Strength

    KV/mm

    ≥25

    GB/T 1408.1

    Volume Resistivity

    Ω. cm

    ≥1×1014

    GB/T 1410

    Longitudinal Change

    %

    ≥50


    Off-center

    %

    ≤30

    UL 224

    Flame Retardant

    -

    ≥30

    GD/T 2406

    Water Absorption

    %

    ≤0.5

    ISO 62-1980

    Dielectric Withstand

    KV/mm

    ≥30KV.1min

    GB/T 1408.1

    Shore Hardness(Shore A)


    ≤90

    GB 2401

    *This data is suitable for 10kv bus bar protection tube. When managing this test, the user must make the tube recovery evenly and make sure the max thickness>2mm, and bus-bar tubes are longer than 1200mm. **35kV bus bar off center proportion≤50%.


    Dimenstion


    1) 1KV Bus Bar Protection Heat Shrinkable Tube

    Specification

    Bus Bar Width(mm)

    As Supplied(mm)

    After Recovery(mm)

    Standard Package

    Inside Diameter

    Wall Thickness

    Inside Diameter

    Wall Thickness

    (m/roll)

    1KV WMPG 30

    30

    31.5±1.0

    0.50±0.15

    ≤15.0

    1.00±0.15

    50

    1KV WMPG 35

    35

    36.5±1.0

    0.50±0.15

    ≤17.5

    1.00±0.15

    50

    1KV WMPG 40

    40

    41.5±1.0

    0.55±0.15

    ≤20.0

    1.00±0.15

    50

    1KV WMPG 45

    45

    46.5±1.0

    0.55±0.15

    ≤22.5

    1.00±0.15

    25

    1KV WMPG 50

    50

    ≥50

    0.55±0.15

    ≤25.0

    1.10±0.15

    25

    1KV WMPG 60

    60

    ≥60

    0.60±0.15

    ≤30.0

    1.20±0.15

    25

    1KV WMPG 70

    70

    ≥70

    0.65±0.15

    ≤35.0

    1.30±0.20

    25

    1KV WMPG 75*

    75

    ≥75

    0.65±0.15

    ≤38.0

    1.30±0.20

    25

    1KV WMPG 80

    80/100

    ≥80

    0.65±0.15

    ≤40.0

    1.30±0.20

    25

    1KV WMPG 85*

    80/100

    ≥85

    0.65±0.15

    ≤43.0

    1.30±0.20

    25

    1KV WMPG 90

    100

    ≥90

    0.65±0.15

    ≤45.0

    1.30±0.20

    25

    1KV WMPG 100

    100/120

    ≥100

    0.65±0.20

    ≤50.0

    1.30±0.20

    25

    1KV WMPG 120

    150

    ≥120

    0.65±0.20

    ≤60.0

    1.30±0.20

    25

    1KV WMPG 150

    180

    ≥150

    0.65±0.20

    ≤70.0

    1.30±0.20

    25

    1KV WMPG 180

    MAX

    ≥180

    0.65±0.30

    ≤90.0

    1.30±0.30

    25

    1KV WMPG 210*

    MAX

    ≥210

    0.65±0.30

    ≤105.0

    1.30±0.30

    25

    1KV WMPG 230*

    MAX

    ≥230

    0.65±0.30

    ≤115.0

    1.30±0.30

    25

    1KV WMPG 250*

    MAX

    ≥250

    0.65±0.30

    ≤125.0

    1.30±0.30

    25


    2) 10KV Bus Bar Protection Heat Shrinkable Tube

    Specification

    Bus Bar Width(mm)

    As Supplied(mm)

    After Recovery(mm)

    Standard Package

    Inside Diameter

    Wall Thickness

    Inside Diameter

    Wall Thickness

    (m/roll)

    10KV WMPG 15/6

    15/12

    ≥15

    1.0±0.30

    ≤6.0

    2.5±0.20

    25

    10KV WMPG 20/8

    20/15

    ≥20

    1.0±0.30

    ≤8.0

    2.5±0.20

    25

    10KV WMPG 25/10

    25/18

    ≥25

    1.0±0.30

    ≤10.0

    2.5±0.20

    25

    10KV WMPG 30/12

    30/20

    ≥30

    1.0±0.30

    ≤12.0

    2.5±0.20

    25

    10KV WMPG 40/16

    40/30

    ≥40

    1.2±0.30

    ≤16.0

    2.8±0.30

    25

    10KV WMPG 50/20

    50/35

    ≥50

    1.2±0.30

    ≤20.0

    2.8±0.30

    25

    10KV WMPG 60/24

    60/45

    ≥60

    1.2±0.30

    ≤24.0

    2.8±0.30

    25

    10KV WMPG 65/26*

    65/45

    ≥65

    1.2±0.30

    ≤26.0

    2.8±0.30

    25

    10KV WMPG 70/28

    70/50

    ≥70

    1.2±0.30

    ≤28.0

    2.8±0.30

    25

    10KV WMPG 75/30*

    75/50

    ≥75

    1.2±0.30

    ≤30.0

    2.8±0.30

    25

    10KV WMPG 80/32

    80/55

    ≥80

    1.2±0.30

    ≤32.0

    2.8±0.30

    25

    10KV WMPG 85/34*

    80/65

    ≥85

    1.2±0.30

    ≤34.0

    2.8±0.30

    25

    10KV WMPG 100/40

    100/75

    ≥100

    1.2±0.30

    ≤40.0

    2.8±0.30

    25

    10KV WMPG 120/48

    120/85

    ≥120

    1.2±0.30

    ≤48.0

    2.8±0.30

    25

    10KV WMPG 150/60

    150/105

    ≥150

    1.2±0.30

    ≤60.0

    2.8±0.30

    25

    10KV WMPG 180/72

    180/120

    ≥180

    1.2±0.30

    ≤72.0

    2.8±0.30

    25

    10KV WMPG 210/84*

    210/140

    ≥210

    1.2±0.40

    ≤84.0

    2.8±0.30

    25

    10KV WMPG 230/92*

    230/150

    ≥230

    1.2±0.40

    ≤92.0

    2.8±0.30

    25

    10KV WMPG 250/100*

    250/160

    ≥250

    1.2±0.40

    ≤100.0

    2.8±0.30

    25



    3) 35 KV Bus Bar Protection Heat Shrinkable Tube

    Specification

    Bus Bar Width (mm)

    As Supplied(mm)

    After Recovery(mm)

    Standard Package

    Inside Diameter

    Wall Thickness

    Inside Diameter

    Wall Thickness

    (m/roll)

    35KV WMPG 30/15

    30

    ≥30

    2.0±0.60

    ≤15.0

    4.0±0.30

    15

    35KV WMPG 35/18

    30/40

    ≥35

    2.0±0.60

    ≤17.5

    4.0±0.30

    15

    35KV WMPG 40/20

    40

    ≥40

    2.0±0.60

    ≤20.0

    4.0±0.30

    15

    35KV WMPG 50/25

    50

    ≥50

    2.0±0.60

    ≤25.0

    4.0±0.30

    15

    35KV WMPG 60/30

    60

    ≥60

    2.0±0.60

    ≤30.0

    4.0±0.30

    15

    35KV WMPG 65/33*

    60/70

    ≥65

    2.0±0.60

    ≤32.5

    4.0±0.30

    15

    35KV WMPG 70/35

    70

    ≥70

    2.0±0.60

    ≤35.0

    4.0±0.30

    15

    35KV WMPG 75/38*

    70/80

    ≥75

    2.0±0.60

    ≤37.5

    4.0±0.30

    15

    35KV WMPG 80/40

    80/100

    ≥80

    2.0±0.60

    ≤40.0

    4.0±0.30

    15

    35KV WMPG 100/50

    100/120

    ≥100

    2.0±0.60

    ≤50.0

    4.0±0.30

    15

    35KV WMPG 120/60

    150

    ≥120

    2.0±0.60

    ≤60.0

    4.0±0.30

    15

    35KV WMPG 150/75

    180

    ≥150

    2.0±0.70

    ≤75.0

    4.0±0.30

    15

    35KV WMPG 180/90*

    MAX

    ≥180

    2.0±0.70

    ≤90.0

    4.0±0.30

    15

    35KV WMPG 210/105*

    MAX

    ≥210

    2.0±0.70

    ≤105.0

    4.0±0.30

    15

    35KV WMPG 230/115*

    MAX

    ≥230

    2.0±0.70

    ≤115.0

    4.0±0.30

    15

    35KV WMPG 250/115*

    MAX

    ≥250

    2.0±0.70

    ≤125.0

    4.0±0.30

    15
