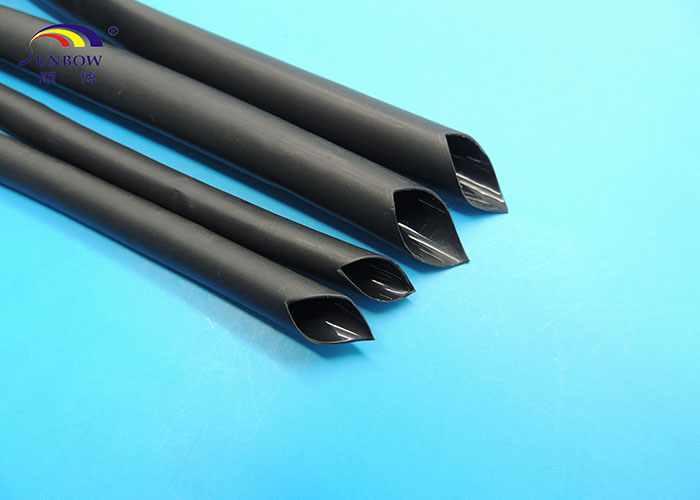

    Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm

    Ask Lasest Price
    Brand Name : Sunbow
    Model Number : SB-SBRS-(4X)G
    Certification : UL, RoHS, Reach, ISO9001, TS16949
    Price : US$0.409/M - US$0.461/M
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 9000000 meter/year
    • Product Details
    • Company Profile

    Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm

    Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm


    Model Number: SB-SBRS-(4X) GR


    Working temperature: -45ºC ~ 125ºC
    Shrink temperature: 70ºC ~ 125ºC

    Shrink ratio: 4:1


    Structure: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1


    Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1 adopts flame retardant, cross-linked polyolefin material with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performance. The inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V/300V.


    Usage: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1


    Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1 allows a few sizes to cover a wide range of splices and component diameters, mechanically tough tubing provides strain relief and abrasion protection of wire splices, terminals, and other components, adhesive-lined against fluids, moisture and other contaminants.


    Standards: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1


    Production standards: UL224, CAN/CSA C22.2 NO198.1-99


    Features: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1


    • 4:1 very high shrink ratio
    • Longitudinal shrink 8% max
    • Out jacket flame retardant
    • Continuous operating temperature: -45C - 125C
    • Shrink temperature: 70C - 125C

    Technical data: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1


    PropertyTest MethodStandard
    Tensile strength(MPa)ASTM D2671≥12
    ElongationASTM D2671≥300
    Tensile strength after aging(MPa)UL224 158C*168hrs≥7.3
    Elongation after aging(%)UL224 158C*168hrs≥200
    Dielectric strength(KV/mm)IEC243≥15
    Volume resistivity(Ω.cm)ASTM D876≥1*1014

    Hot melt adhesive property: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1


    PropertyTest MethodStandard
    Water absorptionASTM D570≤0.2%
    Softening pointASTM E895C
    Strength of pearing(PE)ASTM D1000120N/25mm
    Strength of pearing(AL)ASTM D100080N/25mm

    Dimension: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1


    Inner DiameterAs Supplied(mm)After Recovery(mm)Standard Length
    (inch)(mm)IDMax IDWhole Wall ThicknessAdhesive Thickness(m/roll)(m/pc)
    1/4φ6.06.01.271.26±0.300.50±0.30100
    5/16φ8.08.01.651.70±0.300.75±0.30100
    1/2φ12.012.02.412.10±0.300.95±0.301.22
    3/4φ18.018.04.452.60±0.301.30±0.301.22

    Color: Standard color is black (other color available upon request).


    Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1

    Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1
