    1.0mm - 110mm Silicone Rubber Heat Shrink Tube for Electric Cable and Wire Insulation

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-SR-HST
    Certification : UL, CE, REACH
    Delivery Time : 6-10 working days
    • Product Details
    • Company Profile

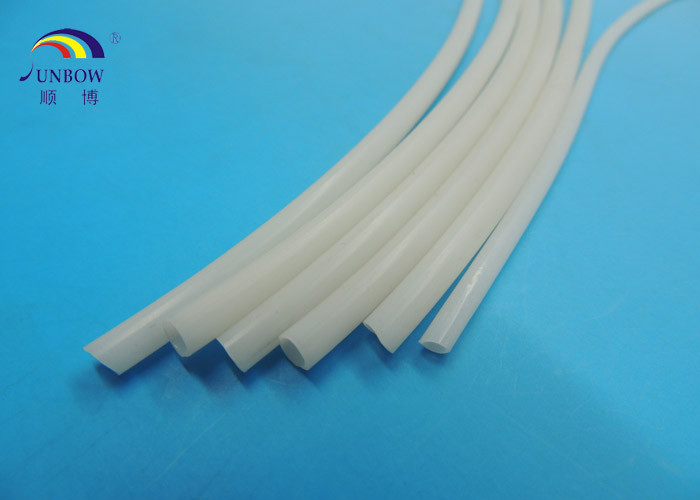

    1.0mm - 110mm Silicone Rubber Heat Shrink Tube for Electric Cable and Wire Insulation

    1.7:1 shrink ratio silicone rubber heat shrink tube for electric cable and wire insulation

    Model Number: SB-SR-HST


    Structure

    High temperature and voltage resistant, flame retardant, soft, SGS compliant.


    Usage

    It is widely use in electrical protection, resistor, capacitor, aerospace, medical instrument etc.

    ;retardant, soft, SGS compliant.


    Specification

    Dielectric constant (*) 50HZ

    3.2

    Rigidity (Shore A)

    70±5

    Copper Corrosion

    No corrosion

    Antibiotic property, erosion resistance property

    Excellent

    Toughness (fold, bend, tear etc.)

    Excellent

    Tensile strength Mpa (kgf/cm)

    6.9(70)

    Dielectric breakdown voltage (kv/mm)

    25

    Appearance

    Smooth, no visible fur and defects , no impurity

    Shrink temperature

    >90ºC

    Shrink ratio (%)

    ≥50%

    Elongation (%)

    40

    Flammability UL-224

    VW-1

    Resistance performance

    Wear-resistant, acid-resistant, anti-virus, anti-corona

    discharge, withstand liquor,

    oil and other special liquid.

    Water absorption

    No


    Dimension

    Size

    Shrink size

    Wall thickness

    After recovery

    Thickness

    I.D.

    Thin type

    Thick type

    I.D.

    Thin type

    Thick type

    Φ1.0

    1.0

    0.5±0.1

    0.80

    0.6

    0.7±0.1

    1.1±0.1

    Φ1.5

    1.5

    0.5±0.1

    0.80

    0.8

    0.7±0.1

    1.1±0.1

    Φ2.0

    2.0

    0.5±0.1

    0.80

    1.2

    0.7±0.1

    1.1±0.1

    Φ2.5

    2.5

    0.5±0.1

    0.80

    1.5

    0.7±0.1

    1.1±0.1

    Φ3.0

    3.0

    0.5±0.1

    0.80

    1.8

    0.7±0.1

    1.1±0.1

    Φ3.5

    3.5

    0.5±0.1

    0.80

    2.0

    0.7±0.1

    1.1±0.1

    Φ4.0

    4.0

    0.5±0.1

    0.80

    2.5

    0.7±0.1

    1.1±0.1

    Φ4.5

    4.5

    0.5±0.1

    0.80

    2.8

    0.7±0.1

    1.1±0.1

    Φ5.0

    5.0

    0.5±0.1

    0.80

    3.0

    0.7±0.1

    1.1±0.1

    Φ6.0

    6.0

    0.5±0.1

    0.80

    3.8

    0.7±0.1

    1.1±0.1

    Φ7.0

    7.0

    0.5±0.1

    0.80

    4.0

    0.7±0.1

    1.1±0.1

    Φ8.0

    8.0

    0.5±0.1

    0.80

    4.8

    0.7±0.1

    1.1±0.1

    Φ9.0

    9.0

    0.5±0.1

    0.80

    5.0

    0.7±0.1

    1.1±0.1

    Φ10.0

    10.0

    1.0±0.1

    1.50

    6.5

    1.7±0.1

    2.5±0.1

    Φ12

    12.0

    1.0±0.1

    1.50

    7.0

    1.7±0.1

    2.5±0.1

    Φ15

    15.0

    1.0±0.1

    1.50

    9.0

    1.7±0.1

    2.5±0.1

    Φ20

    20.0

    1.0±0.1

    1.50

    13.0

    1.7±0.1

    2.5±0.1

    Φ25

    25.0

    1.0±0.1

    1.50

    15.0

    1.7±0.1

    2.5±0.1

    Φ30

    30.0

    1.0±0.1

    1.50

    18.0

    1.7±0.1

    2.5±0.1

    Φ35

    35.0

    1.0±0.1

    1.50

    20.0

    1.7±0.1

    2.5±0.1

    Φ40

    38.0

    1.0±0.1

    1.50

    25.0

    1.7±0.1

    2.5±0.1

    Φ50

    47.0

    1.0±0.1

    1.50

    30.0

    1.7±0.1

    2.5±0.1

    Φ60

    57.0

    1.5±0.1

    2.00

    38.0

    2.5±0.1

    3.2±0.1

    Φ70

    67.0

    1.5±0.1

    2.00

    45.0

    2.5±0.1

    3.2±0.1

    Φ80

    77.0

    1.5±0.1

    2.00

    48.0

    2.5±0.1

    3.2±0.1

    Φ90

    87.0

    1.5±0.1

    2.00

    52.0

    2.5±0.1

    3.2±0.1

    Φ110

    107.0

    1.5±0.1

    2.00

    63.0

    2.5±0.1

    3.2±0.1


    *The thickness could be customized for 2mm~5mm thicker upon request.


    Competitive

    1) ISO 9001 : 2008 and TS 16949 standard manufacturer
    2) high-tech enterprise in China
    3) with 12-year manufacturing experience
    4) factory direct sales
    5) best price high quality product
    6) quick delivery time for sample or formal orders
    7) quick response for feedback
    8) few complaints from customers
    9) more competitive price for VIP customers
    10) convenient situation near to seaport
    11) flame resistant tube of this type is available
    12) high quality non-alkali fiberglass yarn
    13) free samples are available
    14) customized solution for non standard sizes
    15) famous manufacturer partners such as Panasonic, Samsung, Midea, HOT, Emerson etc.
