    Coalxia Wire Flexible PVC Tubing Jacketed Insulation Sleeving , Pvc Pipe Flexible

    Coalxia Wire PVC jacketed insulation sleeving for wire harness


    Product Description

    GRADE:SB-PVC
    Working temperature:-30°C~+105°C

    STRUCTURE


    PVC tubing is produced with superior and environmentally friendly polyvinyl colloidal particle, after drying,

    extruded to tubing when heated up and liquated, then packing in rolls after cooling.


    USAGE


    With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, PVC tubing

    is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical

    motors or lighting equipment, and electronic components, wire harness and etc.


    SPECIFICATION


    ItemUnitTest MethodNumerical Value
    SB-300SB-600
    Voltage ratingV300600
    Temperature rating°CUL224105
    Voltage resistanceBefore agingUL224 23°C2500V/60sec
    After agingUL224 136°C 168hr2500V/60sec
    Volume resistivityΩcmUL224≥1010
    Tensile strengthBefore agingMpaUL224 23°C≥10.4
    After agingMpaUL224 136°C 168hr≥7.3
    ElongationBefore aging%UL224 23°C≥100%
    After aging%UL224 136°C 168hr≥100%
    FlexibilityUL224 136°C 168hrNo cracking
    Heat shockUL224 180°C 4hrNo cracking
    Cold bendUL224 -30°C 1hrNo cracking
    Copper stabilityUL224 136°C 168hrNo corrosion
    Flame resistanceUL224VW-1

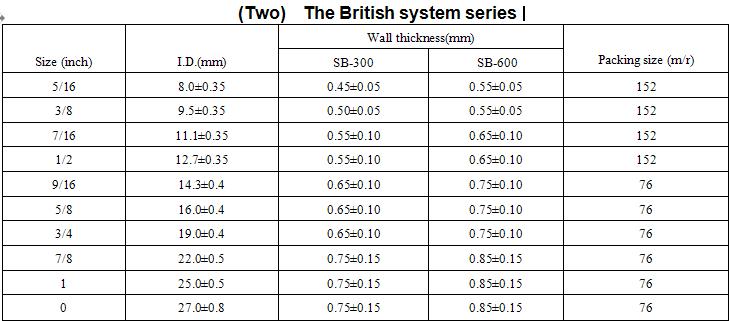

    DIMENSION


    Flexible UL vw-1 extruded PVC tubing for wire harness


    Flexible UL vw-1 extruded PVC tubing for wire harness


    Flexible UL vw-1 extruded PVC tubing for wire harness


    Flexible UL vw-1 extruded PVC tubing for wire harnessFlexible UL vw-1 extruded PVC tubing for wire harnessFlexible UL vw-1 extruded PVC tubing for wire harness


    Our Services


    1) 3~5 quick time production;

    2) 2 years quality guarantee;

    3) Prompt feedback;

    4) 24 hours on line service.


    Company Information


    1) ISO 9001:2008 approved;

    2) 10 years exporting experience;

    3) 15 years manufacturing experience;

    4) Other products certificates: UL E360625 for heat shrink tube, silicone rubber tube and PTFE tube; E333178 and E333177 for silicone fiberglass sleeve; ROHS, REACH, CQC.


    FAQ

    1. Why choose us?

    We are the No.1 insulation materials supplier in China.

    2. What's your best seller?

    Our best seller is silicone fiberglass sleeving and the Heat shrink tube.

    3. What material do you use?

    Fiberglass yarn and silicone resin,PVC,silicone,PE,PET

    4. How's the package?

    Packed by roll then rolls by carton. Also can cut and pack as requested.

    5. Where is your factory?

    In Shenzhen. The loading port here is Yantian or Shekou.

    6. How many employees are there in your company?

    More than 100.

    7. How many people are there in your R&D department?

    More than 10 desingers,.

    8. How do you control the quality?

    We have 10 QC team.

    Each process has one QC. We check carefully before shipment.

    9. What’s your quality guarantee?

    2 years.

    10. What’s your sample lead time?

    can ship right now if in the stock.5 working days if the items are in stock.

    11. Is the sample free charge?

    Yes,it is free but the express fee should be paid by buyer.

    12.What’s your mass production lead time?

    2-7 working days.

    13. What’s your payment terms?

    L/C at sight, T/T in advance,Western Union,Paypal.

    14. What’s your trade term?

    EXW, FOB SHEZNEHN, CIF, CFR.

    15. What’s your Certificate?

    ISO9001, TS16949, UL, ROHS, RACH

    16. What’s your MOQ?

    2000 meters each, can be discussed if in stock.

    17. How to ship the goods?

    Normally by air, by ship if big quantity, up to customers request.


    Coalxia Wire PVC jacketed insulation sleeving for wire harness
