    High Temperature Heat Resistant Uncoated Silicone Fiberglass Sleeving

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-TGS-1S
    Certification : RoHS, REACH
    Price : USD 0.032~1.548/m
    Payment Terms : Western Union, L/C, T/T, Western Union
    Supply Ability : 5000000 Meters / Month
    Delivery Time : 6~10 Working Days
    • Product Details
    • Company Profile

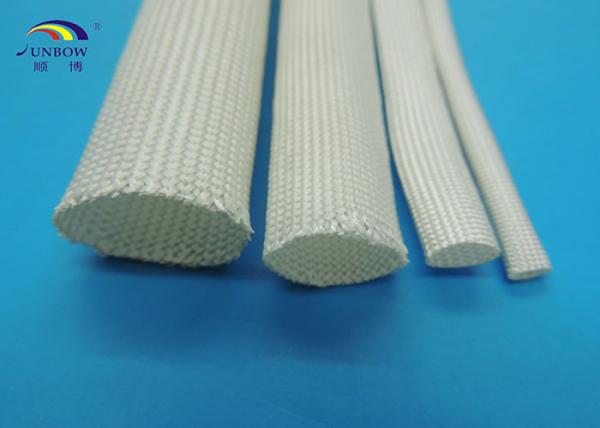

    High Temperature Heat Resistant Uncoated Silicone Fiberglass Sleeving

    High Temperature Heat Resistant Uncoated Silicone Fiberglass Sleeving


    High temperature resistant fiberglass sleeving without coating RoHS approval is composed of woven Non-Alkali Fiberglass.

    Model Number :SB-TGS-1S

    Working temperature: 400ºC - 500ºC


    Usage

    High temperature resistant fiberglass sleeving without coating RoHS approval with its good dielectric strength, flexibilityand flame retarding properties make these sleevings high performance qualities. It can be widely used in un-insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.


    Technical Sheet

    ItemPerformanceNote
    Thermal EnduranceNo Indication of CrackOK

    6 Hrs* 400±5ºC

    245±5ºC 6Hrs Aging

    Fire ResistanceVW-1OKUL 1441

    Specification

    Inside Diameter (mm)

    Wall Thickness

    (mm)

    Standard Package (m/roll)
    NominalTolerance
    φ0.5+0.5, -0.5≥0.25mm200
    φ1.0+0.5, -0.5≥0.25mm200
    φ1.5+0.5, -0.5≥0.25mm200
    φ2.0+0.5, -0.5≥0.25mm200
    φ2.5+0.5, -0.5≥0.30mm200
    φ3.0+0.5, -0.5≥0.30mm200
    φ4.0+0.5, -0.5≥0.30mm200
    φ4.5+0.5, -0.5≥0.35mm100
    φ5.0+0.5, -0.5≥0.35mm100
    φ6.0+0.5, -0.5≥0.35mm100
    φ7.0+0.5, -0.5≥0.40mm100
    φ8.0+0.5, -0.5≥0.40mm100
    φ9.0+0.5, -0.5≥0.45mm100
    φ10.0+1.0 -1.0≥0.45mm100
    φ12.0+1.0, -1.0≥0.45mm50
    φ14.0+1.0, -1.0≥0.45mm50
    φ16.0+1.0, -1.0≥0.45mm50
    φ18.0+1.0, -1.0≥0.45mm50
    φ20.0+1.0, -1.0≥0.50mm25
    φ25.0+1.0, -1.0≥0.50mm25
    φ30.0+1.0, -1.0≥0.50mm25

    Package Details

    0.5mm ~ 1.5mm, 200 meters/roll;

    2.0mm ~ 6.0mm, 100 meters/roll;

    7.0mm ~ 18.0mm, 50 meters/roll;

    20.0mm ~ 30.0mm, 25 meters/roll.

    Carton Size: 35*35*60cm.


    Why Sunbow
    Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.
    Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on.

    All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr.2014 (Cert.No.E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
    Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.
    Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10,000 square meters. We successfully passed ISO9001:2008 and TS16949 international quality management system, now ISO14001 system is also pushing.



    SUNBOW main products,

    Fiberglass sleeve

    Heat shrink tube

    PVC tube

    Silicone tube

    Corrugated tube

    PTFE tube/ FEP tube / PFA tube / PVDF tube


    FAQ
    1. Why choose us?
    We are the No.1 fiberglass sleeve coated silicone resin in China.
    2. What material do you use?
    Fiberglass yarn and silicone resin,PVC,silicone,PE,PET. RoHS,Reach,UL certificated
    3. How's the package?
    Packed by roll then rolls by carton. Also can cut and pack as requested.
    4. Where is your factory?
    In Shenzhen. The loading port here is Yantian or Shekou.
    5. How many employees are there in your company?
    More than 50.
    6. How many people are there in your R&D department?
    More than 5 desingers,.
    7. How do you control the quality?
    We have 8 QC team.
    Each process has one QC. We check carefully before shipment.
    8. What's your sample lead time?
    can ship right now if in stock.5 - 7 working days if the items are out of stock.
    9.Is the sample free charge?
    Yes,it is free but the express fee should be paid by buyer.
    10.What's your mass production lead time?
    7 - 15 working days.
    11. What's your payment terms?
    L/C at sight, T/T in advance,Western Union,Paypal.
