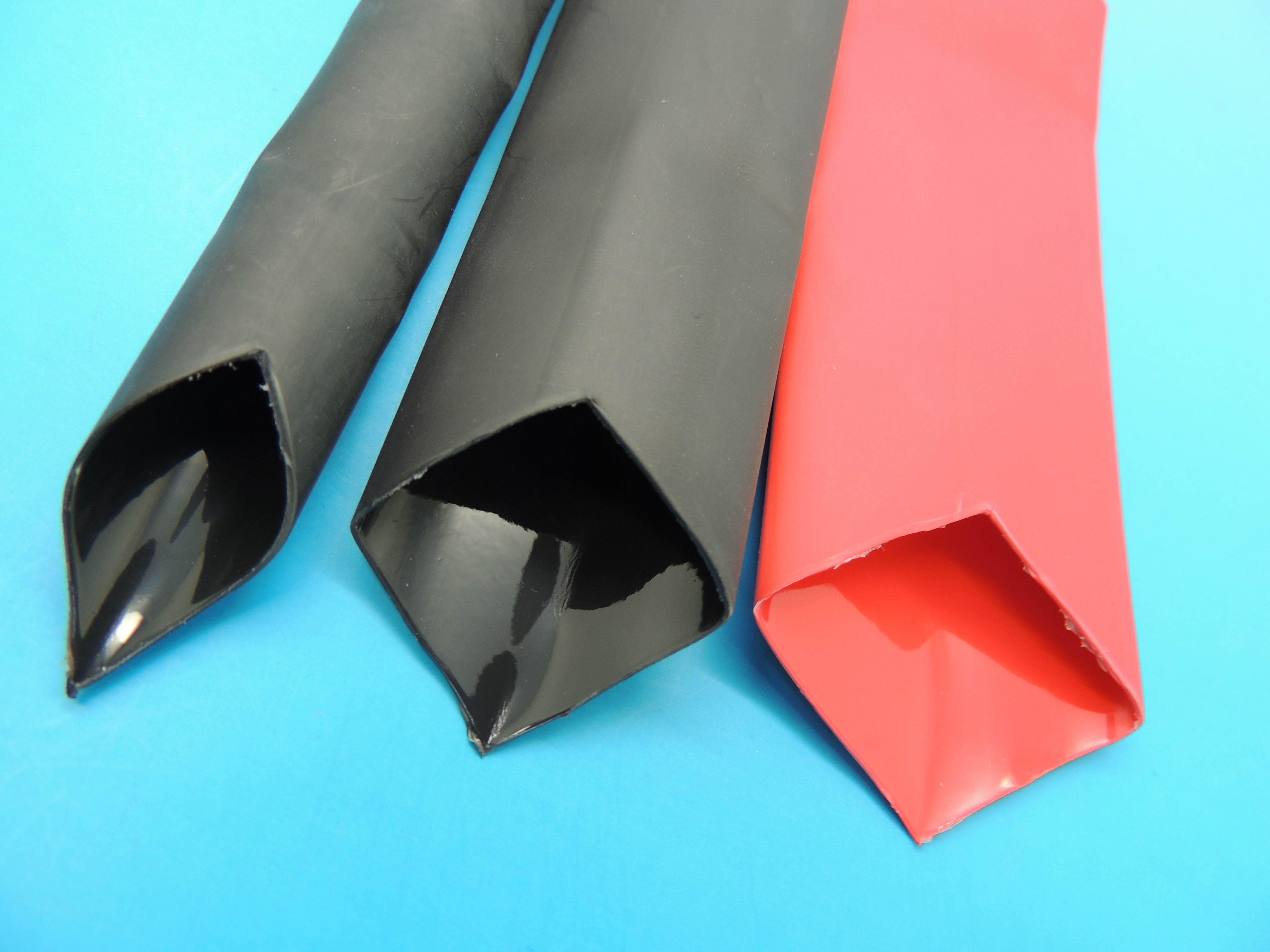

    Halogen free heavy wall polyolefin heat shrinable tube with / without adhesive with ratio 3:1 for electronics

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-SBRSW&SB-RSFRW
    Certification : UL no E360625,RoHS/REACH
    Price : USD0.09-16.4 per meter
    Payment Terms : Western Union, T/T,paypal
    Supply Ability : 9,000,000 meters per month
    • Product Details
    • Company Profile

    Halogen free heavy wall polyolefin heat shrinable tube with / without adhesive with ratio 3:1 for electronics

    Advantage:

    1. Great production ability as high as 9,000,000 meters/month
    2. Competitive price with quality products
    3. Whole color UL certificated with 3.2mm-39mm

    Structure

    Heavy wall heat shrinkable tube is manufactured by co-extrusion polyolefin and environment friendly hot-melt adhesive. It is designed to provide both insulation and sealing for protected articles. Both adhesive –lined and without adhesive are available.

    Usage:

    It has heavy wall, semi-rigid, sealing, insulation, damp proof performances. It is mainly used in electrons, electricity, telecommunications, automobile, shipping, aerospace manufacturing etc.

    Characteristics:

    1. Shrink ratio: 3:1
    2. Shrink temperature: 70ºC ~ 125ºC
    3. Heavy wall, semi-rigid, insulated, excellent sealing performance

    Dimension:


    1) Flame Retardant Heavy Wall Heat Shrinkable Tube with Adhesive Lined

    Inner Diameter
    (mm)

    As Supplied (mm)
    ID

    After Recovery(mm)

    Standard Package (m/pc)

    ID

    Outer Layer Thickness

    Adhesive Thickness

    Whole Wall Thickness

    9/3

    ≥9

    ≤3

    2.0±0.20

    0.35±0.10

    2.30±0.25

    1.22

    13/4

    ≥13

    ≤4

    2.4±0.20

    0.35±0.10

    2.75±0.25

    1.22

    20/6

    ≥20

    ≤6

    2.5±0.20

    0.40±0.10

    2.90±0.25

    1.22

    28/9

    ≥28

    ≤9

    2.5±0.20

    0.40±0.10

    2.90±0.25

    1.22

    33/10.2

    ≥33

    ≤10.2

    3.2±0.20

    0.40±0.10

    3.60±0.25

    1.22

    38.1/12

    ≥38.1

    ≤12

    3.4±0.20

    0.60±0.15

    4.00±0.30

    1.22

    43.2/12

    ≥43.2

    ≤12

    4.3±0.20

    0.70±0.20

    5.00±0.35

    1.22

    51/16

    ≥51

    ≤16

    4.3±0.20

    0.70±0.20

    5.00±0.35

    1.22

    70/21

    ≥70

    ≤21

    4.3±0.20

    0.70±0.20

    5.00±0.35

    1.22

    85/25

    ≥85

    ≤25

    4.3±0.20

    0.70±0.20

    5.00±0.35

    1.22

    105/30

    ≥105

    ≤30

    4.3±0.20

    0.80±0.25

    5.10±0.35

    1.22

    120/39

    ≥120

    ≤39

    4.3±0.20

    0.80±0.25

    5.10±0.35

    1.22

    140/42

    ≥140

    ≤42

    4.3±0.20

    0.80±0.25

    5.10±0.35

    1.22






    2) Flame Retardant Heavy Wall Heat Shrinkable Tube without Adhesive Lined

    Inner Diameter
    (mm)

    As supplied (mm)
    ID

    After Recovery(mm)

    Standard Package (m/pc)

    ID

    Whole Wall Thickness

    9/3

    ≥9

    ≤3

    2.30±0.25

    1.22

    13/4

    ≥13

    ≤4

    2.75±0.25

    1.22

    20/6

    ≥20

    ≤6

    2.90±0.25

    1.22

    28/9

    ≥28

    ≤9

    2.90±0.25

    1.22

    33/10.2

    ≥33

    ≤10.2

    3.60±0.25

    1.22

    38.1/12

    ≥38.1

    ≤12

    4.00±0.30

    1.22

    43.2/12.7

    ≥43.2

    ≤12

    5.00±0.35

    1.22

    51/16

    ≥51

    ≤16

    5.00±0.35

    1.22

    70/21

    ≥70

    ≤21

    5.00±0.35

    1.22

    85/25

    ≥85

    ≤25

    5.00±0.35

    1.22

    105/30

    ≥105

    ≤30

    5.10±0.35

    1.22

    120/39

    ≥120

    ≤39

    5.10±0.35

    1.22

    140/42

    ≥140

    ≤42

    5.10±0.35

    1.22


    Color:Standard is black,other colors available upon request
