electrical insulation tube PE/PVC heat shrink tube green / yellow
double color
Advantage: Yellow / Green Striped Flexible Heat Shrink Tubing Flame
Retardant
1. Great production ability as high as 9,000,000 meters/month
2. Competitive price with quality products
3. Whole color UL certificated with inner diameter 0.8-180mm
Structure: Yellow / Green Striped Flexible Heat Shrink Tubing Flame
Retardant

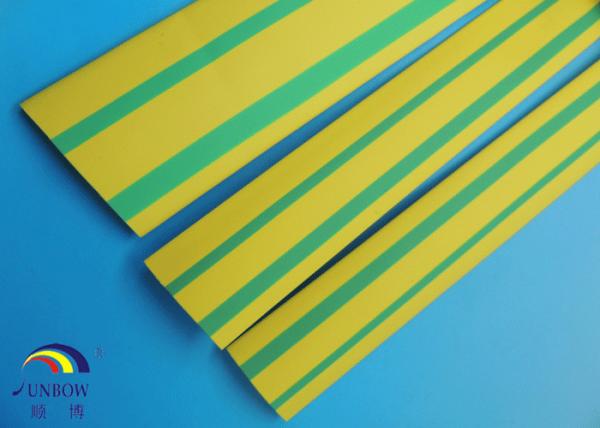

Yellow / Green Striped Flexible Heat Shrink Tubing Flame Retardant
is made from excellent yellow and green polyolefin material with
special method.
Usage: Yellow / Green Striped Flexible Heat Shrink Tubing Flame
Retardant
It has soft, flame retardant, environmental, bright color stand and
stable performance. And it is mainly used in wire and cable conduit
marks, electron, electricity, telecommunications, shipping,
aerospace etc.
Characteristics: Yellow / Green Striped Flexible Heat Shrink Tubing Flame
Retardant
1. Shrink ratio: 2:1 & 3:1
2. Shrink temperature: 70ºC ~ 120ºC
3. Soft, flame retardant, environmental friendly, bright color
stand and stable performance
Technical datasheet: Yellow / Green Striped Flexible Heat Shrink Tubing Flame
Retardant
Property | Test Method | Standard |
Tensile Strength (MPA) | ASTM D2671 | ≥10.4 |
Elongation (%) | ASTM D2671 | ≥ 200 |
Dielectric Strength (KV/mm) | IEC243 | ≥15 |
Volume Resistivity (Ω cm) | IEC 93 | ≥1x1014 |
Tensile Strength After Aging | UL224 158ºC*168hrs | ≥ 7.3 |
Elongation After Aging (%) | UL224 158ºC*168hrs | ≥100 |
Heat Shock | UL224 250ºC*4hrs | No Cracking |
Flame Resistance | UL224 | VW-1 |
Dimension: Yellow / Green Striped Flexible Heat Shrink Tubing Flame
Retardant
1) 2:1 yellow & green heat shrinkable tube
Size | As Supplied (mm) | After Recovery (mm) | Standard Package (m/spool) | Application Range (mm) |
Inner Diameter | Wall Thickness | Inner Diameter | Wall Thickness |
Φ0.8 | 1.0±0.2 | 0.15±0.05 | ≤0.50 | 0.22±0.10 | 200 | 0.6~0.8 |
Φ1.0 | 1.5±0.3 | 0.15±0.05 | ≤0.65 | 0.28±0.10 | 200 | 0.75~0.9 |
Φ1.5 | 2.0±0.3 | 0.18±0.05 | ≤0.85 | 0.32±0.10 | 200 | 0.95~1.4 |
Φ2.0 | 2.5±0.3 | 0.18±0.05 | ≤1.00 | 0.35±0.10 | 200 | 1.1~1.8 |
Φ2.5 | 3.0±0.3 | 0.18±0.05 | ≤1.25 | 0.38±0.10 | 200 | 1.35~.3 |
Φ3.0 | 3.5±0.4 | 0.18±0.05 | ≤1.50 | 0.40±0.10 | 200 | 1.6~2.7 |
Φ3.5 | 4.0±0.4 | 0.22±0.05 | ≤1.80 | 0.42±0.10 | 200 | 1.85~3.2 |
Φ4.0 | 4.5±0.4 | 0.25±0.05 | ≤2.00 | 0.45±0.10 | 200 | 2.1~3.6 |
Φ4.5 | 5.0±0.4 | 0.25±0.05 | ≤2.30 | 0.50±0.10 | 100 | 2.35~4.0 |
Φ5.0 | 5.5±0.4 | 0.25±0.05 | ≤2.5 | 0.55±0.10 | 100 | 2.6~4.5 |
Φ6.0 | 6.5±0.4 | 0.28±0.05 | ≤3.0 | 0.55±0.10 | 100 | 3.1~5.4 |
Φ7.0 | 7.5±0.4 | 0.28±0.05 | ≤3.5 | 0.55±0.10 | 100 | 3.7~6.3 |
Φ8.0 | 8.5±0.5 | 0.28±0.05 | ≤4.0 | 0.60±0.10 | 100 | 4.2~7.2 |
Φ9.0 | 9.5±0.5 | 0.30±0.08 | ≤4.5 | 0.60±0.10 | 100 | 4.7~8 |
Φ10 | 10.5±0.5 | 0.30±0.08 | ≤5.0 | 0.60±0.10 | 100 | 5.2~9 |
Φ11 | 11.5±0.5 | 0.30±0.08 | ≤5.5 | 0.60±0.10 | 100 | 5.7~10 |
Φ12 | 12.5±0.5 | 0.30±0.08 | ≤6.0 | 0.60±0.10 | 100 | 6.2~11 |
Φ13 | 13.5±0.5 | 0.35±0.10 | ≤6.5 | 0.65±0.10 | 100 | 6.7~12 |
Φ14 | 14.5±0.5 | 0.35±0.10 | ≤7.0 | 0.65±0.10 | 100 | 7.3~13 |
Φ15 | 15.5±0.6 | 0.40±0.12 | ≤7.5 | 0.70±0.10 | 100 | 7.8~14 |
Φ16 | 16.5±0.6 | 0.40±0.12 | ≤8.0 | 0.70±0.10 | 100 | 8.3~15 |
Φ17 | 17.5±0.6 | 0.40±0.12 | ≤8.5 | 0.70±0.10 | 100 | 8.8~16 |
Φ18 | 19.0±0.7 | 0.40±0.15 | ≤9.0 | 0.80±0.15 | 100 | 9.3~17 |
Φ20 | 22.0±0.7 | 0.40±0.15 | ≤10.0 | 0.80±0.15 | 100 | 10.4~19 |
Φ22 | 24.0±0.7 | 0.40±0.15 | ≤11.0 | 0.80±0.15 | 100 | 11.4~21 |
Φ25 | 26.0±0.7 | 0.55±0.15 | ≤12.5 | 0.90±0.15 | 50 | 12.8~24 |
Φ28 | 29.0±0.7 | 0.55±0.15 | ≤14.0 | 0.90±0.15 | 50 | 14.4~29 |
Φ30 | 31.5±0.7 | 0.55±0.15 | ≤15.0 | 0.95±0.15 | 50 | 16~29 |
Φ35 | 36.5±0.7 | 0.55±0.15 | ≤17.5 | 1.00±0.15 | 50 | 18~34 |
Φ40 | 41.5±0.7 | 0.55±0.15 | ≤20.0 | 1.00±0.15 | 50 | 21~39 |
Φ45 | 46.0±0.7 | 0.55±0.15 | ≤22.5 | 1.00±0.15 | 25 | 23~44 |
Φ50 | 51.0±0.7 | 0.55±0.15 | ≤25.0 | 1.00±0.15 | 25 | 26~49 |
Φ60 | ≥60 | 0.60±0.15 | ≤30 | 1.55±0.20 | 25 | 35~55 |
Φ70 | ≥70 | 0.65±0.15 | ≤35 | 1.60±0.20 | 25 | 40~65 |
Φ80 | ≥80 | 0.70±0.15 | ≤40 | 1.70±0.20 | 25 | 45~75 |
Φ90 | ≥90 | 0.75±0.15 | ≤45 | 1.90±0.20 | 25 | 50~88 |
Φ100 | ≥100 | 0.80±0.20 | ≤50 | 2.10±0.20 | 25 | 55~95 |
Φ120.0 | ≥120 | 0.85±0.20 | ≤60 | 2.20±0.20 | 15 | 65~115 |
Φ150.0 | ≥150 | 0.90±0.20 | ≤75 | 2.20±0.20 | 15 | 80~145 |
Φ180.0 | ≥180 | 0.95±0.20 | ≤90 | 2.30±0.20 | 15 | 95~175 |
2) 3:1 yellow & green heat shrinkable tube
Inner Diameter | As Supplied (mm) | After Recovery (mm) | Standard Package |
(inch) | (mm) | Inner Diameter | Wall Thickness | (m/spool) |
1/8 | Φ3.2 | ≥3.2 | ≤1.0 | 0.55±0.15 | 200 |
3/16 | Φ4.8 | ≥4.8 | ≤1.5 | 0.60±0.15 | 100 |
1/4 | Φ6.4 | ≥6.4 | ≤2.0 | 0.65±0.15 | 100 |
3/8 | Φ9.5 | ≥9.5 | ≤3.0 | 0.75±0.15 | 50 |
1/2 | Φ12.7 | ≥12.7 | ≤4.0 | 0.75±0.20 | 50 |
3/4 | Φ19.1 | ≥19.1 | ≤6.0 | 0.85±0.20 | 50 |
1 | Φ25.4 | ≥25.4 | ≤8.0 | 1.00±0.20 | 50 |
1-1/2 | Φ39.0 | ≥39.0 | ≤13.0 | 1.50±0.20 | 50 |
Color:Standard color is black,other color available upon request
About SUNBOW: Yellow / Green Striped Flexible Heat Shrink Tubing Flame Retardant
In 2003, Shenzhen Sunbow Insulation Materials MFG. Co., Ltd was
established in the area which is running with time. Our company
covers over 10000 square meters and is mainly engaged in
researching, developing, producing and selling various insulation
materials. With excellent sense of innovation and industry-leading
technology, we’ve launched fiberglass sleeving, silicone rubber
tubing, PVC soft tube, all kinds of heat shrink tubes, expandable
sleeving, PTFE tube, corrugated pipe, polyimide film tube etc,
which are mainly used in electronics, motors, transformers,
inverters, high and low voltage power equipment, electricity,
telecom, automotive, new energy, railway, aerospace ,
petrochemical, defense and other fields.
As one of the high-tech enterprises in Shenzhen, Sunbow advocates
“Innovation as Driving force” and devotes itself to researching and
developing green environmental insulation materials. We have a
professional R & D center, and a developing team with modern
innovation and professional technology. Based on the
customer-oriented, continuous-innovation and independent R &D,
we SUNBOW have obtained more than 10 patents.
