    1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station

    Cable Accessories - Cold Shrink Termination Kits 1-36 kV for power grid

    Model Number: SB-WLW

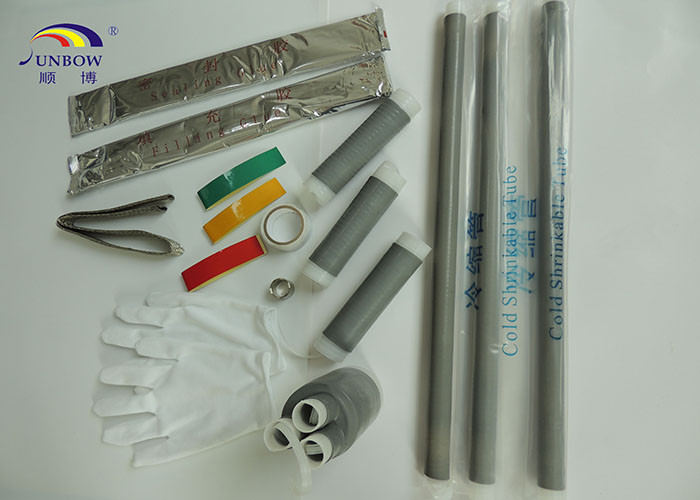

    The cold shrink termination is available for indoor & outdoor applications for single core and 3-core cables up to 36kV. The termination is one-piece design manufactured from high quality liquid silicone rubber. The cold shrink termination is factory expanded on a removable inner-supporting core. Once the termination is positioned onto the cable core, the supporting core is unwound and removed, and the live-memory action of the material shrinks the termination into place. The termination kit includes all the necessary components to make the installation.


    Features

    1. Simple and fast installation, no heat or special tools required
    2. One-piece design with integrated stress control
    3. Offering protection against aging, tracking and erosion
    4. High resistance to fungus, acid, alkalis and ozone
    5. Accommodating a wide range of cable sizes
    6. For indoor or outdoor applications

    Selection Table
    Voltage
    U0 /U (Um)
    CoresCable Cross Section /mm2Diameter over Insulation /mmProduct No.
    18/30kV(36)1, 335-5022-2718/30kVWLN-1/1(3/1)
     Indoor70-18527.5-3518/30kVWLN-1/2(3/2)
      240-50035.5-4618/30kVWLN-1/3(3/3)
      63046.5-5518/30kVWLN-1/4(3/4)
     1, 335-5022-2718/30kVWLW-1/1(3/1)
     Outdoor70-18527.5-3518/30kVWLW-1/2(3/2)
      240-50035.5-4618/30kVWLW-1/3(3/3)
      63046.5-5518/30kVWLW-1/4(3/4)
    12/20kV(24)1, 325-5018-21.512/20kVWLN-1/1(3/1)
     Indoor70-12021-26.512/20kVWLN-1/2(3/2)
      150-24025.5-3212/20kVWLN-1/3(3/3)
      300-40032.5-3712/20kVWLN-1/4(3/4)
      500-63039-44.312/20kVWLN-1/5(3/5)
     1, 325-5016-2212/20kVWLW-1/1(3/1)
     Outdoor70-12020-2712/20kVWLW-1/2(3/2)
      150-24024-3212/20kVWLW-1/3(3/3)
      300-40030-3712/20kVWLW-1/4(3/4)
      500-63039-44.312/20kVWLW-1/5(3/5)
    8.7/15kV(17.5)1, 325-5016-19.58.7/15kVWLN- 1/1(3/1)
     Indoor70-12019-24.58.7/15kVWLN- 1/2(3/2)
      150-24023-308.7/15kVWLN- 1/3(3/3)
      300-40030.5-358.7/15kVWLN-1/4(3/4)
      500-63037-42.38.7/15kVWLN-1/5(3/5)
     1, 325-5016-19.58.7/15kVWLW- 1/1(3/1)
     Outdoor70-12019-24.58.7/15kVWLW- 1/2(3/2)
      150-24023-308.7/15kVWLW- 1/3(3/3)
      300-40030.5-358.7/15kVWLW-1/4(3/4)
      500-63037-42.38.7/15kVWLW-1/5(3/5)
    6/10kV(12)1, 350-7016-19.56/10kVWLN- 1/1(3/1)
     Indoor95-15019-24.56/10kVWLN- 1/2(3/2)
      185-30023.5-306/10kVWLN-1/3(3/3)
      400-50030.5-356/10kVWLN-1/4(3/4)
      63037-42.36/10kVWLN-1/5(3/5)
     1, 350-7016-19.56/10kVWLW- 1/1(3/1)
     Outdoor95-15019-24.56/10kVWLW- 1/2(3/2)
      185-30023.5-306/10kVWLW- 1/3(3/3)
      400-50030.5-356/10kVWLW- 1/4(3/4)
      63037-42.36/10kVWLW- 1/5(3/5)
    0.6/1kV(1.2)1,3,25-50-0.6/1kVWLT-1(3,4,5)/1
     4, 570-1200.6/1kVWLT-1(3,4,5)/2
     Indoor or150-2400.6/1kVWLT-1(3,4,5)/3
     Outdoor300-4000.6/1kVWLT-1(3,4,5)/4

    1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station

    1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station

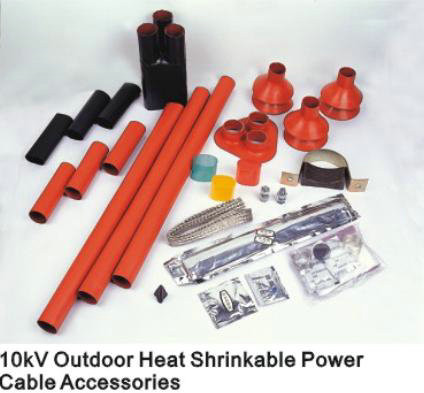

    Heat shrink terminal products for comparison,

    1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station

    1-36 kV Cable Accessories Cold Shrink Termination Kits for Power Grid / Power Station
