    Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-WLJ
    Certification : ROHS, REACH
    • Product Details
    • Company Profile

    Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation

    Cold Shrink Cable accessories Joint Kits 1-36 kV with Model number SB-WLJ

    Model Number: SB-WLJ


    Description

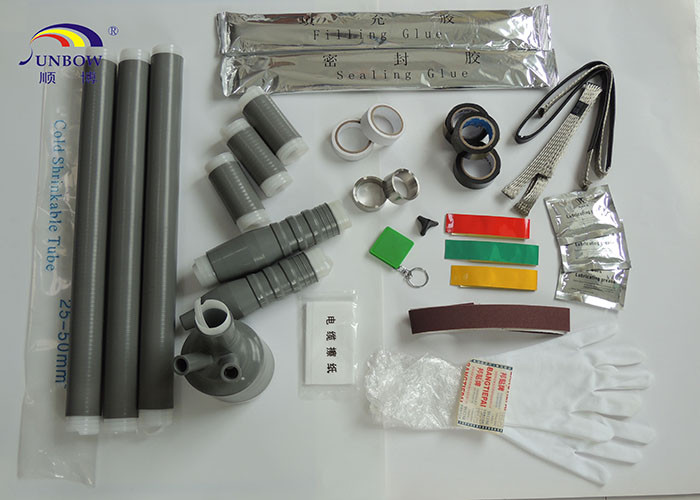

    The cold shrink cable joint is suitable for 1 or 3-core XLPE cable with Al or Cu conductor (1-36kV). The joint body is made of advanced liquid silicone rubber with integrated stress control. This design vouches for the best possible interface, thereby greatly minimizing partial discharge and improving its performance during operation. The joint kit includes all the necessary components to make the installation.


    Selection Table

    Voltage U0/U (Um)
    Cores
    Cable Cross Section/mm2
    Diameter over Insulation/mm
    Product No.
    18/30kV(36)
    1, 3
    35-50
    70-120
    150-240
    300-400
    500-630
    22-28
    26.5-33
    31.5-39
    35.5-43
    40.5-49
    18/30kVWLJ-1/1(3/1)
    18/30kVWLJ-1/2(3/2)
    18/30kVWLJ-1/3(3/3)
    18/30kVWLJ-1/4(3/4)
    18/30kVWLJ-1/5(3/5)
    12/20kV(24)
    1, 3
    25-50
    70-120
    150-240
    300-400
    500-630
    18-22.5
    21-26.5
    25.5-32
    32.5-37
    39-44.5
    12/20kVWLJ-1/1(3/1)
    12/20kVWLJ-1/2(3/2)
    12/20kVWLJ-1/3(3/3)
    12/20kVWLJ-1/4(3/4)
    12/20kVWLJ-1/5(3/5)
    8.7/15kV(17.5)
    1, 3
    25-50
    70-120
    150-240
    300-400
    500-630
    16-19.5
    19-27.5
    23.5-30
    30.5-35
    37-42.3
    8.7/15kVWLJ-1/1(3/1)
    8.7/15kVWLJ-1/2(3/2)
    8.7/15kVWLJ-1/3(3/3)
    8.7/15kVWLJ-1/4(3/4)
    8.7/15kVWLJ-1/5(3/5)
    6/10kV(12)
    1, 3
    50-70
    95-150
    185-300
    400-500
    630
    16-19.5
    19-24.5
    23.5-30
    30.5-38
    37-42.3
    6/10kVWLJ-1/1(3/1)
    6/10kVWLJ-1/2(3/2)
    6/10kVWLJ-1/3(3/3)
    6/10kVWLJ-1/4(3/4)
    6/10kVWLJ-1/4(3/4)
    0.6/1kV(1.2)
    1, 3, 4, 5
    25-50
    70-120
    150-240
    300-400
    0.6/1kVWLJ-1(3,4,5)/1
    0.6/1kVWLJ-1(3,4,5)/2
    0.6/1kVWLJ-1(3,4,5)/3
    0.6/1kVWLJ-1(3,4,5)/4

    Remark: ID* means inner diameter.
    Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
    Other related products,
    Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
    Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
    Heat shrink terminal products
    Cold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector InsulationCold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector InsulationCold Shrink Cable Accessories Joint Kits 1 - 36 kV For Connector Insulation
    Cold shrink cable accessories are capable of shrinking without application of heat. They are manufactured in a pre-expanded condition and assembled onto a removable core. The core is removed after the tube is positioned over the cable for installation, allowing the tube to shrink and providing a moisture-tight seal.
    SUNBOW cold shrink cable accessories are characterized by simple solutions with safe connection. They are manufactured with liquid silicone rubber, which has high-quality electrical insulation, excellent tracking resistance as well as high elasticity.
