    Cable Spare Parts Cross-linked Polyolefin Cable Breakout Boots ( Cable Splitter )

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-WRSZT
    Certification : UL, ROHS, Reach
    • Product Details
    • Company Profile

    Cable Spare Parts Cross-linked Polyolefin Cable Breakout Boots ( Cable Splitter )

    Cable Accessories - Cross-linked Polyolefin Cable Breakout Boots(Cable splitter)

    Model Number: SB-WRSZT


    Description

    ● Product: Cross-linked Polyolefin Cable Breakout Boots

    ● Material: polyolefin

    ● Shrink temperature: Start at 100ºC, and shrink totally at 130ºC

    ● Voltage Rating: up to 35KV

    ● Color: Black, red, milk-white(only for oil-resistant terminations)


    Characterictics

    ● Shrink ratio accommodates a wide range of cables

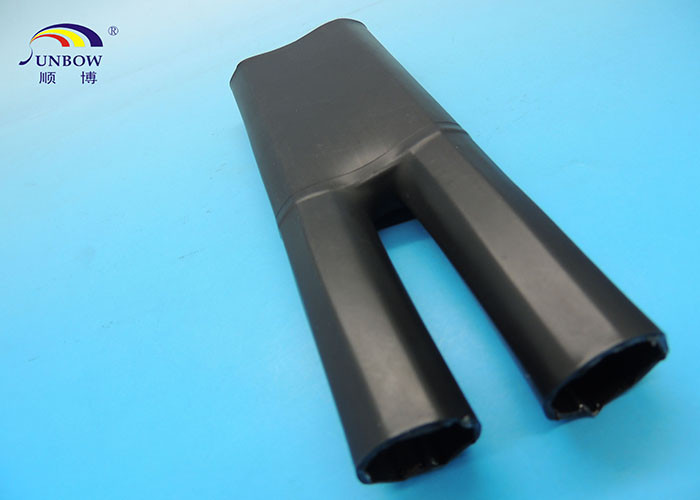

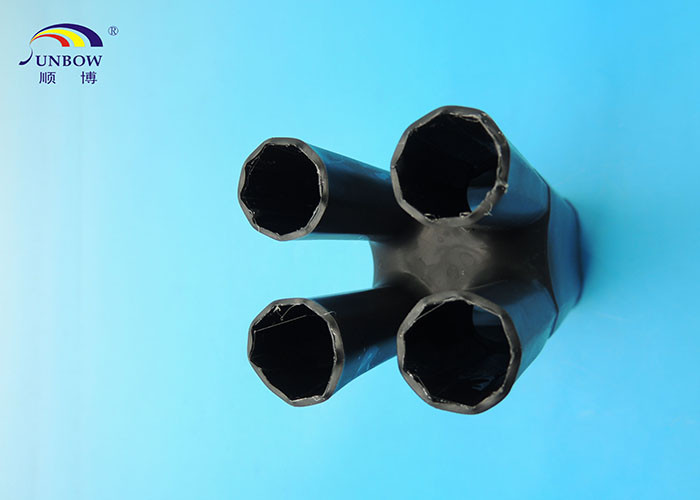

    ● Boots for 2, 3, 4 and 5 way cable

    ● Strain relief and mechanical protection

    ● Thermoplastic adhesive liner

    ● Continuous operating temperature

    ● Shrink temperature:135ºC


    Dimension

    Specification

    Cable Specification

    As supplied(mm)

    Full Length

    After Recovery(mm)

    Breakout

    Main Diameter

    Finger Diameter

    Breakout

    Main Diameter

    Finger

    Diameter

    2 Cores

    Breakout

    0#

    1kv

    4-6,10-16

    ≥24

    ≥12

    130±5

    ≤12

    ≤6

    1#

    25-50

    ≥40

    ≥20

    140±5

    ≤14

    ≤8

    2#

    70-120

    ≥48

    ≥25

    145±5

    ≤17

    ≤8

    3#

    150-240

    ≥63

    ≥35

    135±5

    ≤25

    ≤12

    4#

    300-400

    ≥74

    ≥40

    140±5

    ≤25

    ≤12

    3 Cores

    Breakout

    -2#

    4-6,10-16

    ≥28

    ≥11

    130±5

    ≤17

    ≤6

    -1#

    25-50

    ≥48

    ≥18

    170±5

    ≤22

    ≤8

    0#

    70-120

    ≥60

    ≥25

    175±5

    ≤28

    ≤9

    1#

    10kv

    25-50*

    ≥70

    ≥30

    225±5

    ≤36

    ≤14

    2#

    70-120*

    ≥85

    ≥39

    235±5

    ≤45

    ≤16

    3#

    150-240*

    ≥105

    ≥42

    245±5

    ≤53

    ≤19

    4#

    300-400*

    ≥125

    ≥58

    245±5

    ≤63

    ≤25

    5#

    300-500*

    ≥140

    ≥65

    245±5

    ≤63

    ≤25

    4 Cores

    Breakout

    0#

    1kv

    4-6,10-16

    ≥38

    ≥10

    130±5

    ≤18

    ≤6

    1#

    25-50

    ≥50

    ≥16

    135±5

    ≤24

    ≤7

    2#

    70-120

    ≥68

    ≥23

    180±5

    ≤32

    ≤9

    3#

    150-240

    ≥80

    ≥30

    210±5

    ≤44

    ≤13

    4#

    300-400

    ≥90

    ≥35

    210±5

    ≤44

    ≤13

    5#

    500-630

    ≥110

    ≥40

    210±5

    ≤44

    ≤13

    5 Cores

    Breakout

    0#

    4-6,10-16

    ≥42

    ≥12

    155±5

    ≤21

    ≤5

    1#

    25-50

    ≥55

    ≥15

    170±5

    ≤29

    ≤7

    2#

    70-120

    ≥70

    ≥23

    170±5

    ≤38

    ≤10

    3#

    150-240

    ≥90

    ≥30

    180±5

    ≤51

    ≤13

    4#

    300-400

    ≥120

    ≥39

    205±5

    ≤47

    ≤14

    Cable Spare Parts Cross-linked Polyolefin Cable Breakout Boots ( Cable Splitter )Cable Spare Parts Cross-linked Polyolefin Cable Breakout Boots ( Cable Splitter )Cable Spare Parts Cross-linked Polyolefin Cable Breakout Boots ( Cable Splitter )Cable Spare Parts Cross-linked Polyolefin Cable Breakout Boots ( Cable Splitter )

    Technical data


    Property

    Test Method

    Standard

    Operating Temperature

    IEC 216

    -40ºC ~ +105ºC

    Tensile Strength

    GB1040

    ≥12MPa

    Breakage Elongation(%)

    GB1040

    ≥300%

    Breakdown Strength

    GB1408

    ≥15kV/mm

    Volume Resistivity

    GB1410

    ≥1×1011Ω.m

    Brittle Temperature

    GB5470

    ≤-40ºC
