    Cable Accessories - Cold Shrink Silicone Rubber Breakouts for Power Station

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-WCSF
    Certification : UL, ROHS, ISO9001:2008
    • Product Details
    • Company Profile

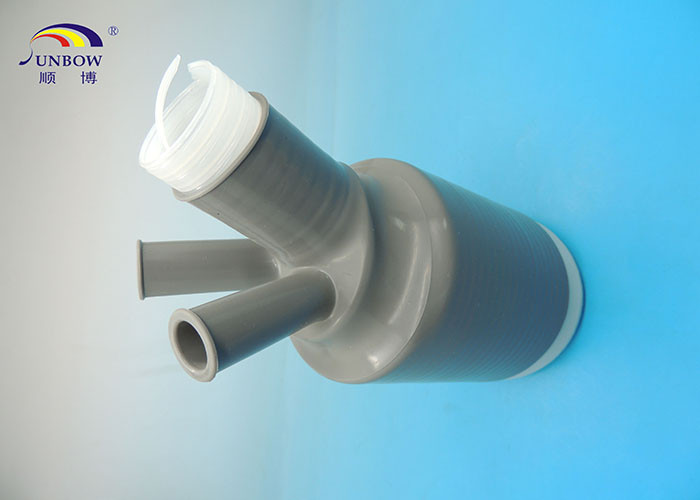

    Cable Accessories - Cold Shrink Silicone Rubber Breakouts for Power Station

    Cable Accessories - Cold shrink silicone rubber breakouts for power station

    Model Number: SB-WCSF


    General description

    Cold shrink silicone rubber breakouts are factory expanded and mounted on removable inner supporting

    plastic cores. They are supplied for field installation in a prestretched condition. The supporting cores are

    removed after the seal has been positioned for installation around the breakout area of a 3,4,5,6/C

    (3,4,5,6 conductor) cable. Core removal allows the silicone rubber boot to shrink down to a predetermined

    diameter; creating an environmental Enclosure for individual cable phase legs and the overall cable jacket.


    Feature

    ● Versatile: installs quickly and accommodates a wide range of cable sizes;

    ● No torches or heat required;

    ● No specific user skills or craftsmanship required;

    ● Excellent resistance to ozone and ultra-violet radiation;

    ● Good solvent resistance compatible with industry approved cable cleaners;

    ● Excellent thermal stability.


    Dimension

    No.

    Core

    ID (As supplied)
    ¢C

    Application
    range Rc

    D (As supplied)
    ¢F

    Application
    range Rc

    LF

    LC

    1

    3

    Ø77/ Ø36

    Ø38-Ø67

    Ø32/ Ø14

    Ø16- Ø26

    45

    130

    2

    Ø88/ Ø 43

    Ø45-Ø78

    Ø35/ Ø16

    Ø18- Ø29

    45

    135

    3

    Ø104/ Ø50

    Ø52-Ø94

    Ø40/ Ø 20

    Ø22- Ø34

    45

    150

    4

    Ø120/ Ø59

    Ø61-Ø110

    Ø47/ Ø23

    Ø25- Ø41

    45

    165

    5

    Ø140/ Ø72

    Ø74-Ø130

    Ø60/ Ø 28

    Ø30- Ø54

    55

    180

    6

    4

    Ø65/Ø20

    Ø22-Ø55

    Ø20/Ø6

    Ø8-Ø14

    35

    125

    7

    Ø80/Ø28

    Ø30-Ø70

    Ø25/Ø8

    Ø10-Ø19

    40

    137

    8

    Ø88/Ø40

    Ø42-Ø78

    Ø32/Ø10

    Ø12-Ø26

    40

    145

    9

    Ø104/Ø40

    Ø42-Ø94

    Ø40/Ø10

    Ø12-Ø36

    40

    145

    10

    5

    Ø80/Ø26

    Ø28-Ø70

    Ø20/Ø6

    Ø8-Ø14

    40

    123

    11

    Ø88/Ø36

    Ø38-Ø78

    Ø25/Ø8

    Ø10-Ø19

    40

    134

    12

    Ø110/Ø47

    Ø49-Ø100

    Ø35/Ø11

    Ø13-Ø29

    45

    138

    13

    Ø120/Ø47

    Ø49-Ø110

    Ø40/Ø11

    Ø13-Ø36

    45

    138

    14

    6

    Ø104/Ø35

    Ø37-Ø94

    Ø32/Ø10

    Ø12- Ø26

    60

    135

    Cable Accessories - Cold Shrink Silicone Rubber Breakouts for Power StationCable Accessories - Cold Shrink Silicone Rubber Breakouts for Power StationCable Accessories - Cold Shrink Silicone Rubber Breakouts for Power Station
