    Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-WCSEC
    Certification : REACH, ROHS
    • Product Details
    • Company Profile

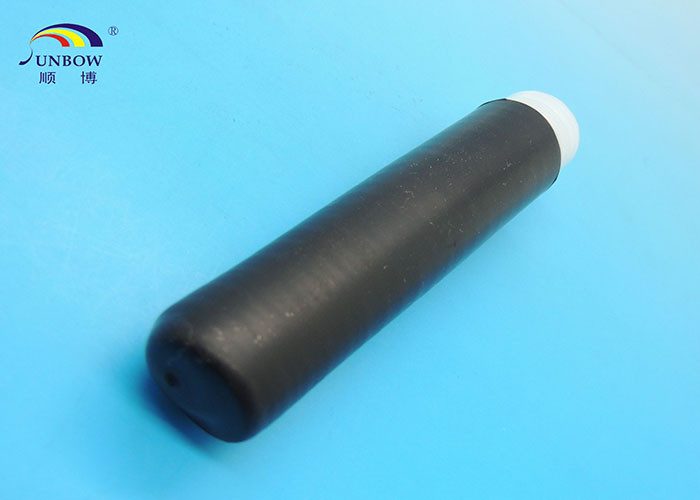

    Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing

    Cable accessories - Cold Shrink End Caps with SUNBOW Model number SB-WCSEC

    Model Number: SB-WCSEC


    Description

    Cold shrink end caps are made of EPDM rubber, can meet a variety of

    configuration requirements. Offering sealing protection over multi-core cable ends. Used to seal cable

    during installation or storage, protecting cable ends.


    Usage

    Cold Shrink End Caps protect cables, pipes and other cylindrical objects from exposure to moisture,

    contamination, corrosion, ozone, ultra-violet radiation, physical contact and other environmental hazards.

    configuration requirements. Offering sealing protection over multi-core cable ends. Used to seal cable

    during installation or storage, protecting cable ends.


    Characteristics

    l Simple and fast installation, no tools required, no training required for installation.

    l Accommodating size ranges from 13mm – 70mm.

    l Sealing tight, high rebound even after prolonged years of aging and exposure.

    l No mastic or tape required. No torches or heat required.

    l Resists fungus, acids, alkali and ozone, Water-resistance.

    l Easily removed.


    Dimension

    ID as Supplied

    (Min) (mm)

    ID after Recovered

    (Max) /mm

    Wall Thickness after Recovered

    (±0.1mm)

    Application Range

    (mm)

    Length

    (mm)

    Ø20

    12

    2.5

    Ø13- Ø16

    70±5

    Ø28

    16

    2.5

    Ø18- Ø24

    70±5

    Ø47

    23

    2.6

    Ø25- Ø38

    70±5

    Ø80

    46

    2.6

    Ø48- Ø70

    70±5


    Technical data


    Property

    Test Method

    Standard Value

    300% Modulus

    ASTM D-412-75

    4.2MPa

    Ultimate Tensile

    ASTM D-412-75

    10.05MPa

    Ultimate Elongation

    ASTM D-412-75

    600%

    Tear strength

    ASTM D-624C-73

    28.3KN/m

    Fungus Resistance

    ASTM G-21

    28 days exposure No Growth

    Moisture Absorption 7 days@ 90ºC in H2O


    3.0% wt. Gain

    Industrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End SealingIndustrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End SealingIndustrail Cable Fittings Cold Shrink End Caps 20mm - 80mm Waterproof Cable End Sealing
