Brand Name : | SUNBOW |
Model Number : | SB-WRSFM |
Certification : | UL E360625 |
Price : | USD0.07-13.4 per PCS |
Payment Terms : | L/C, T/T, Western Union, Paypal |
Supply Ability : | 100000000000000PCS per month |
Delivery Time : | 7~10 days upon order quantity |

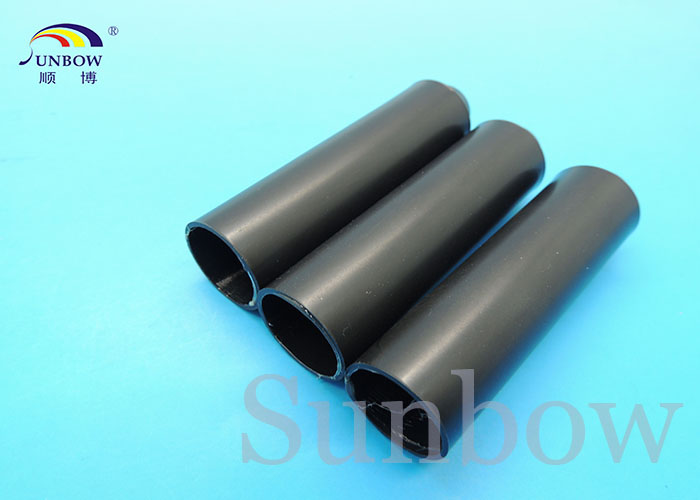

PE Heatshrink adhesive lined end cap for cable , Hot Melt Glue
Product Description
Heatshrink adhesive lined end caps are used to seal the ends of
plastic, rubber and paper insulated cables, from moisture, dirt and
corrosion.
Product Features
Resistant to common fluids and chemicals
Seals and protects cable ends (Waterproof)
Heat Shrink End Caps
Material: Polyolefin
Wall Type: Heavy Wall
Temperature Range: -45~105 C
Shrink Ration: 2: 1
Color: Black
Length:22~270mm
Wire Range: 6~240mm
Shrink Temperature: 110~130 C
Features
Technical data
Property | Test Method | Standard Value |
Operating temperature | IEC 216 | -45ºC to+105ºC |
Tensile strength | ASTM-D 2671 | ≥13MPa |
Elongation at break | ASTM-D 2671 | ≥300% |
Tensile strength after aging | ASTM-D-2671/120ºC,168hrs | ≥10MPa |
Elongation at break after aging | ASTM-D-2671/120ºC,168hrs | ≥240% |
Dielectric strength | IEC 243 | ≥15kV/mm |
Volume resistance | ASTM-D-2303 | ≥1×1013Ω.cm |
Dielectric constant | IEC 250 | 3.0 |
Radial shrinkage | - | ≥50% |
Eccentricity | ASTM-D-2671 | ≤35% |
Low Temperature Flexibility | ASTM-D-2671 | -40ºC, 4hrs, no cracking |
Minimum shrink temperature | - | 90ºC |
Minimum fully recovered temperature | - | 130ºC |
Dimension
Size | Size after recovery(mm) | Size as supplied (mm) | Cable sizes(mm) | |||
Size | Inner Diameter | Wall thickness | Inner Diameter | Wall thickness | length | Outer Diameter |
Φ 11 | ≤6.5 | 1.1±0.1 | ≥11 | 0.7±0.2 | ≥22 | Φ6-9 |
Φ 16 | ≤8.0 | 2.5±0.1 | ≥16 | 1.2±0.2 | ≥70 | Φ9-14 |
Φ 20 | ≤8.0 | 2.5±0.1 | ≥20 | 1.2±0.2 | ≥70 | Φ9-17 |
Φ 25 | ≤11 | 2.5±0.1 | ≥25 | 1.2±0.2 | ≥80 | Φ12-22 |
Φ 32 | ≤17 | 2.6±0.1 | ≥32 | 1.5±0.2 | ≥90 | Φ17-27 |
Φ 40 | ≤15 | 2.8±0.1 | ≥40 | 1.5±0.2 | ≥90 | Φ20-35 |
Φ 55 | ≤25 | 2.8±0.1 | ≥55 | 1.5±0.2 | ≥125 | Φ28-45 |
Φ 75 | ≤30 | 3.2±0.1 | ≥75 | 1.8±0.2 | ≥145 | Φ40-65 |
Φ 100 | ≤42 | 3.5±0.1 | ≥100 | 1.8±0.2 | ≥140 | Φ50-90 |
Φ 120 | ≤59 | 3.5±0.1 | ≥120 | 1.8±0.2 | ≥155 | Φ70-110 |
Φ 140 | ≤63 | 4.0±0.1 | ≥140 | 2.0±0.2 | ≥180 | Φ90-130 |
Φ 250 | ≤94 | 4.0±0.1 | ≥250 | 2.0±0.2 | ≥270 | Φ120-240 |
PE Cable End caps Heatshrink adhesive lined end caps For Cable Accessories
![]() |
