    High Temp Adhesive Lined End Caps Cable Accessories for end of Wires

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-WRSFM
    Certification : UL E360625
    Price : USD0.07-13.4 per PCS
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 100000000000000PCS per month
    Delivery Time : 5~10 days upon order quantity
    • Product Details
    • Company Profile

    High Temp Adhesive Lined End Caps Cable Accessories for end of Wires

    High Temp Adhesive Lined End Caps Cable Accessories for end of Wires

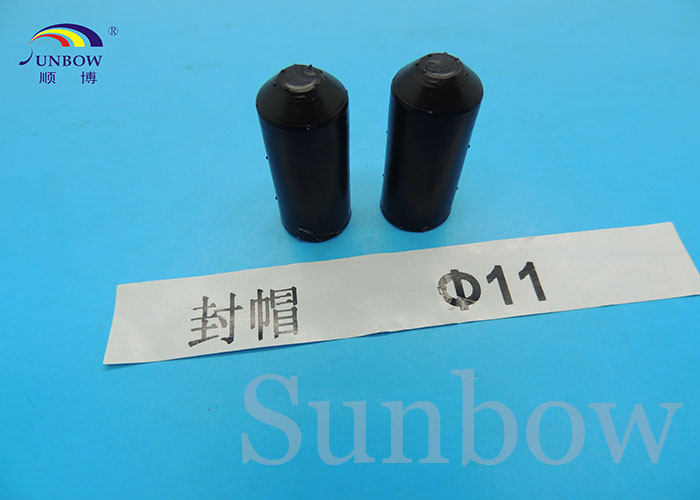

    Heat Shrink Adhesive Lined End Caps specifically used with Heat Shrink Tubing at the end of Wires and Cables.

    Heat Shrink Adhesive Lined End Caps provide an easy and efficient way of sealing, insulating and shielding cable or wire ends.

    Adhesive lined heat shrinkable polyolefin cable caps used to seal the ends of plastic, rubber and paper insulated cables from moisture, dirt and corrosion.

    Cable caps are internally coated with a hot-melt adhesive.


    Heat Shrink Adhesive Lined End Caps Cable Accessory


    Dimension

    Size

    Size after recovery(mm)

    Size as supplied (mm)

    Cable sizes(mm)

    Size

    Inner Diameter

    Wall thickness

    Inner Diameter

    Wall thickness

    length

    Outer Diameter

    Φ 11

    ≤6.5

    1.1±0.1

    ≥11

    0.7±0.2

    ≥22

    Φ6-9

    Φ 16

    ≤8.0

    2.5±0.1

    ≥16

    1.2±0.2

    ≥70

    Φ9-14

    Φ 20

    ≤8.0

    2.5±0.1

    ≥20

    1.2±0.2

    ≥70

    Φ9-17

    Φ 25

    ≤11

    2.5±0.1

    ≥25

    1.2±0.2

    ≥80

    Φ12-22

    Φ 32

    ≤17

    2.6±0.1

    ≥32

    1.5±0.2

    ≥90

    Φ17-27

    Φ 40

    ≤15

    2.8±0.1

    ≥40

    1.5±0.2

    ≥90

    Φ20-35

    Φ 55

    ≤25

    2.8±0.1

    ≥55

    1.5±0.2

    ≥125

    Φ28-45

    Φ 75

    ≤30

    3.2±0.1

    ≥75

    1.8±0.2

    ≥145

    Φ40-65

    Φ 100

    ≤42

    3.5±0.1

    ≥100

    1.8±0.2

    ≥140

    Φ50-90

    Φ 120

    ≤59

    3.5±0.1

    ≥120

    1.8±0.2

    ≥155

    Φ70-110

    Φ 140

    ≤63

    4.0±0.1

    ≥140

    2.0±0.2

    ≥180

    Φ90-130

    Φ 250

    ≤94

    4.0±0.1

    ≥250

    2.0±0.2

    ≥270

    Φ120-240


    Technical data


    Property

    Test Method

    Standard Value

    Operating temperature

    IEC 216

    -45ºC to+105ºC

    Tensile strength

    ASTM-D 2671

    ≥13MPa

    Elongation at break

    ASTM-D 2671

    ≥300%

    Tensile strength after aging

    ASTM-D-2671/120ºC,168hrs

    ≥10MPa

    Elongation at break after aging

    ASTM-D-2671/120ºC,168hrs

    ≥240%

    Dielectric strength

    IEC 243

    ≥15kV/mm

    Volume resistance

    ASTM-D-2303

    ≥1×1013Ω.cm

    Dielectric constant

    IEC 250

    3.0

    Radial shrinkage

    -

    ≥50%

    Eccentricity

    ASTM-D-2671

    ≤35%

    Low Temperature Flexibility

    ASTM-D-2671

    -40ºC, 4hrs, no cracking

    Minimum shrink temperature

    -

    90ºC

    Minimum fully recovered

    temperature

    -

    130ºC


    Heat Shrink Adhesive Lined End Caps Cable Accessory
