    Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving

    Ask Lasest Price
    Brand Name : Sunbow
    Model Number : SB-SGS-70
    Certification : UL , RoHS , Reach , CSA
    Price : USD0.07-13.4 per meter
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 600000 Meters / Month
    Delivery Time : 7~10 Working Days
    • Product Details
    • Company Profile

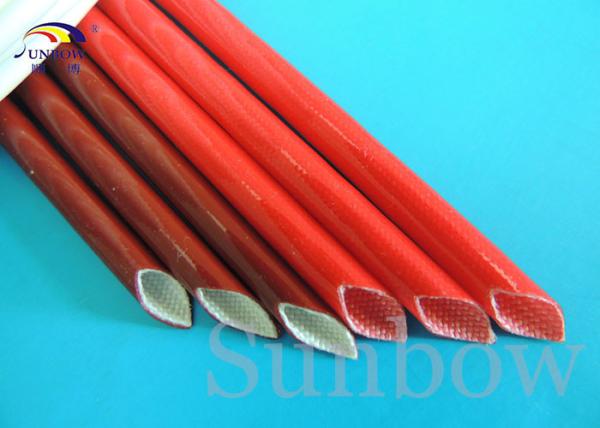

    Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving

    Brown Color 12mm Electrical Wire Fiberglass Insulation Sleeving


    Silicone Coated Fiberglass Sleeving Applications:

    Silicone Coated Fiberglass Sleeving may be used for the insulation of leads and connections in transformers.


    Silicone Coated Fiberglass Sleeving Properties:

    Operating Temperatures: +200°C

    Voltage Rating: 600 Volt

    Flammability: Self-Extinguishing

    Dielectric Strength: 7000 Volts


    Sunbow Silicone Rubber Coated Fiberglass Sleeve Specification:
    Temperature: withstands continuous exposure to 200C;
    Inner diameter: 0.5mm ~50.0mm.


    Package:
    200m/roll,100m/roll, 50m/roll, 25m/roll.
    In carton box, Other packing style on request.


    Specification


    Item

    Performance

    Note

    Dielectric Breakdown Voltage KV AC

    Minimum Average

    ≥7.0

    Before Aging

    Minimum Single Point

    ≥5.0

    Minimum Average

    ≥3.5

    6 Hrs* 245±5ºC

    245±5ºC 6Hrs Aging

    Minimum Single Point

    ≥2.5

    No Breakdown

    /

    1 KV in 2% Salt Water

    Thermal Endurance

    No Indication of Crack

    OK

    1440 Hrs* 235±5ºC

    235±5ºC 1440Hrs Aging

    Fire Resistance

    VW-1

    OK

    UL 1441



    Dimension


    Inside Diameter

    Wall Thickness (mm)

    Standard Package (m/roll)

    Nominal (mm)

    Tolerance (mm)

    φ0.5

    +0.2, -0.1

    ≥0.37

    200

    φ1.0

    +0.2, -0.1

    ≥0.37

    200

    φ1.5

    +0.2, -0.1

    ≥0.37

    200

    φ2.0

    +0.2, -0.1

    ≥0.37

    200

    φ2.5

    +0.3, -0.1

    ≥0.42

    200

    φ3.0

    +0.3, -0.1

    ≥0.42

    200

    φ4.0

    +0.3, -0.1

    ≥0.42

    200

    φ4.5

    +0.3, -0.1

    ≥0.51

    100

    φ5.0

    +0.3, -0.1

    ≥0.51

    100

    φ6.0

    +0.3, -0.1

    ≥0.51

    100

    φ7.0

    +0.3, -0.1

    ≥0.56

    100

    φ8.0

    +0.3, -0.1

    ≥0.56

    100

    φ9.0

    +0.3, -0.1

    ≥0.66

    100

    φ10.0

    +0.3, -0.1

    ≥0.66

    100

    φ12.0

    +1.0, -1.0

    ≥0.66

    50

    φ14.0

    +1.0, -1.0

    ≥0.66

    50

    φ16.0

    +1.0, -1.0

    ≥0.66

    50

    φ18.0

    +1.0, -1.0

    ≥0.66

    50

    φ20.0

    +1.0, -1.0

    ≥0.76

    25

    φ25.0

    +1.0, -1.0

    ≥0.76

    25

    φ30.0

    +1.0, -1.0

    ≥0.76

    25
