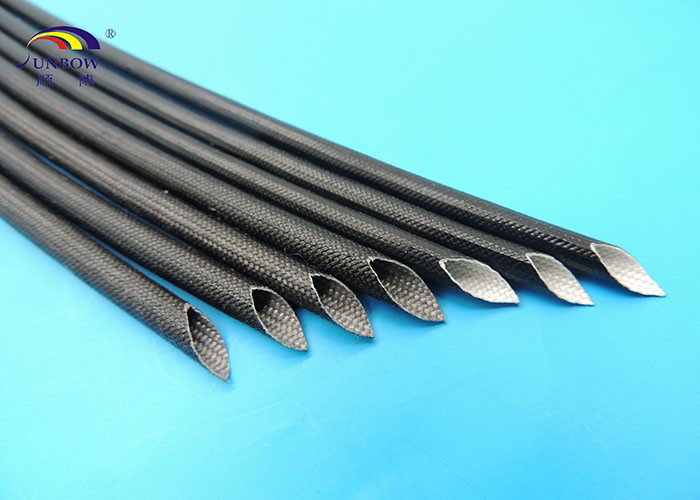

Wire harness colorful silicone resin fibeglass sleeving 10mm
Model Number :SB-SGS-25
Working temperature: 200 ºC
Production process
Wiring harness colorful silicone resin fibeglass sleeving 10mm is non-alkali fiberglass braided then coated with silicone resin
and treated in high temperature.
Performance
Wiring harness colorful silicone resin fibeglass sleeving 10mm has its good dielectric strength, flexibility and flame retarding
properties make it high performance qualities.
Dimension
| Inside diameter | Wall thickness (mm) | Standard package m/roll |
| Nominal (mm) | Tolerance (mm) |
| φ0.5 | +0.2, -0.1 | ≥0.30 | 200 |
| φ1.0 | +0.2, -0.1 | ≥0.30 | 200 |
| φ1.5 | +0.2, -0.1 | ≥0.30 | 100 |
| φ2.0 | +0.2, -0.1 | ≥0.30 | 100 |
| φ2.5 | +0.3, -0.1 | ≥0.35 | 100 |
| φ3.0 | +0.3, -0.1 | ≥0.35 | 100 |
| φ4.0 | +0.3, -0.1 | ≥0.35 | 100 |
| φ4.5 | +0.3, -0.1 | ≥0.40 | 100 |
| φ5.0 | +0.3, -0.1 | ≥0.40 | 100 |
| φ6.0 | +0.3, -0.1 | ≥0.40 | 100 |
| φ7.0 | +0.3, -0.1 | ≥0.45 | 50 |
| φ8.0 | +0.3, -0.1 | ≥0.45 | 50 |
| φ9.0 | +0.3, -0.1 | ≥0.55 | 50 |
| φ10.0 | +0.3, -0.1 | ≥0.55 | 50 |
| φ12.0 | +1.0, -1.0 | ≥0.55 | 30 |
| φ14.0 | +1.0, -1.0 | ≥0.55 | 25 |
| φ16.0 | +1.0, -1.0 | ≥0.55 | 25 |
| φ18.0 | +1.0, -1.0 | ≥0.55 | 25 |
| φ20.0 | +1.0, -1.0 | ≥0.65 | 25 |
| φ25.0 | +1.0, -1.0 | ≥0.65 | 25 |
| φ30.0 | +1.0, -1.0 | ≥0.65 | 25
|
Parameters
| Item | Performance | Note |
| Dielectric breakdown voltage KV AC | Minimum average | ≥2.5 | Before aged |
| Minimum single point | ≥2.0 |
| Minimum average | ≥1.5 | 6 HRS* 245±5ºC 245±5ºC 6HRS Aging |
| Minimum single point | ≥1.0 |
| Thermal endurance | No indication of crack | OK | 6 HRS* 245±5ºC 245±5ºC 6HRS Aging |
| Fire resistance | VW-1 | OK | UL 1441 |
Uage
Wiring harness colorful silicone resin fibeglass sleeving 10mm can be widely used in conductors, bus bars, component leads,
assemblies of electrical components, household appliances, motors,
etc.
Color
Standard color is white, other color available upon request.
Package
Packing by rolls or cut upon request.
0.5mm ~ 1.0mm, 200 meters/roll;
1.5mm ~ 7.0mm, 100 meters/roll;
8.0mm ~ 10.0mm, 50 meters/roll;
12.0mm, 30 meters/roll;
13.0mm ~ 30.0mm, 25 meters/roll;
Carton Size 35*35*60cm
FAQ
Q1. Are you a factory or trading company?
We are a factory and we can provide best price and high quality
products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free
samples for your test if necessary.
Q3. What is your MOQ?
Normally, 1000m per size.
Q4. What are your payment terms?
T/T 100% or West Union.
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we
sent the goods , we will give you the tracking number or other
relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated
manufacturer. Our products have passed UL, ROHS, REACH
certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) ISO 9001 : 2008 TS 16949 standard factory manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
