    6.0mm Silicone Fiberglass Sleeving , Wiring Harness Proetction fibreglass sleeve

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-SGS-15
    Certification : UL, RoHS, REACH
    Price : USD 0.03 ~ 3.62 / meter
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5,000,000 meters per month
    Delivery Time : about 7 ~ 14 working days
    • Product Details
    • Company Profile

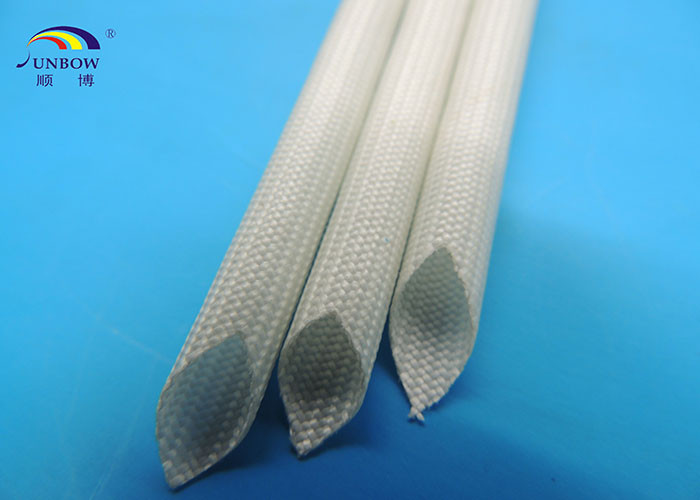

    6.0mm Silicone Fiberglass Sleeving , Wiring Harness Proetction fibreglass sleeve


    6.0mm Silicone Fiberglass Sleeving , Wiring Harness Proetction fibreglass sleeve


    Model Number :SB-SGS-15

    Working temperature: 200 ºC


    Production process

    Silicone fiberglass sleeving is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature.


    Performance

    Silicone fiberglass sleeving has its good dielectric strength, flexibility and flame retarding properties make it high performance qualities.


    Uage

    Silicone fiberglass sleeving can be widely used in conductors, bus bars, component leads, assemblies of electrical components, household appliances, motors, etc.


    Parameters

    ItemPerformanceNote

    Dielectric breakdown

    Voltage KV AC

    Minimum average≥1.5Before aged
    Minimum single point≥1.0
    Minimum average≥1.0

    6 HRS* 245±5ºC

    245±5ºC 6HRS AGING

    Minimum single point≥0.7
    Thermal enduranceNo indication of crackOK

    6 HRS* 245±5ºC

    245±5ºC 6HRS AGING

    Fire resistanceVW-1OKUL 1441

    Dimension

    Inside diameter

    Wall thickness minimum

    (mm)

    Standard package

    m/roll

    Nominal(mm)Tolerance(mm)
    φ0.5+0.2, -0.1≥0.30200
    φ1.0+0.2, -0.1≥0.30200
    φ1.5+0.2, -0.1≥0.30100
    φ2.0+0.2, -0.1≥0.30100
    φ2.5+0.3, -0.1≥0.35100
    φ3.0+0.3, -0.1≥0.35100
    φ4.0+0.3, -0.1≥0.35100
    φ4.5+0.3, -0.1≥0.40100
    φ5.0+0.3, -0.1≥0.40100
    φ6.0+0.3, -0.1≥0.40100
    φ7.0+0.3, -0.1≥0.45100
    φ8.0+0.3, -0.1≥0.45100
    φ9.0+0.3, -0.1≥0.55100
    φ10.0+0.3, -0.1≥0.55100
    φ12.0+1.0, -1.0≥0.5550
    φ14.0+1.0, -1.0≥0.5550
    φ16.0+1.0, -1.0≥0.5550
    φ18.0+1.0, -1.0≥0.5550
    φ20.0+1.0, -1.0≥0.6525
    φ25.0+1.0, -1.0≥0.6525
    φ30.0+1.0, -1.0≥0.6525

    Package

    Packing by rolls or cut upon request.

    0.5mm ~ 1.0mm, 200 meters/roll;

    1.5mm ~ 7.0mm, 100 meters/roll;

    8.0mm ~ 10.0mm, 50 meters/roll;

    12.0mm, 30 meters/roll;

    13.0mm ~ 30.0mm, 25 meters/roll;

    Carton Size 35*35*60cm

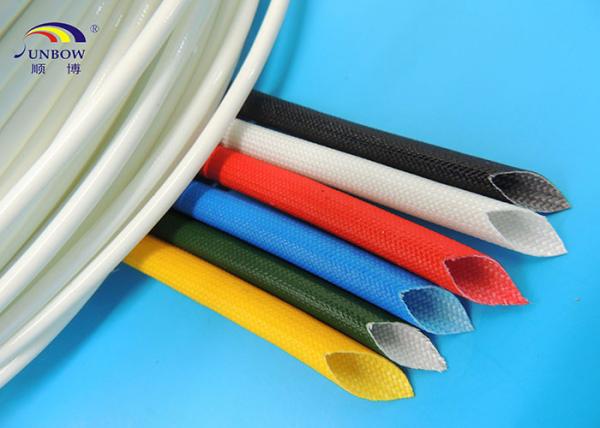

    Color

    Standard color is white, other color available upon request.



    6.0mm Silicone Fiberglass Sleeving , Wiring Harness Proetction fibreglass sleeve6.0mm Silicone Fiberglass Sleeving , Wiring Harness Proetction fibreglass sleeve6.0mm Silicone Fiberglass Sleeving , Wiring Harness Proetction fibreglass sleeve


    SUNBOW main products

    1. Fiberglass sleeve (Material: Silicone resin, Silicone rubber, Acrylic resin, PU resin)
    2. Heat shrink tube (Material: PE, PVC, Silicone rubber, PTFE, PET, FEP, PVDF)
    3. Expandable sleeve (Material: PET, PP, Nylon)
    4. Corrugated tubing (Material: PE, PP, PA)
    5. PVC tube, Silicone rubber, PTFE tube, FEP tube, PFA tube, PVDF tube, etc.

    Advantage

    1) ISO 9001 : 2008 TS 16949 standard factory manufacturer

    2) high-tech enterprise in China

    3) with 12-year manufacturing experience

    4) factory direct sales

    5) best price high quality product

    6) quick delivery time

    7) quick response for feedback

    8) few complaints from customers

    9) more competitive price for VIP customers

    10) convenient situation near to seaport
