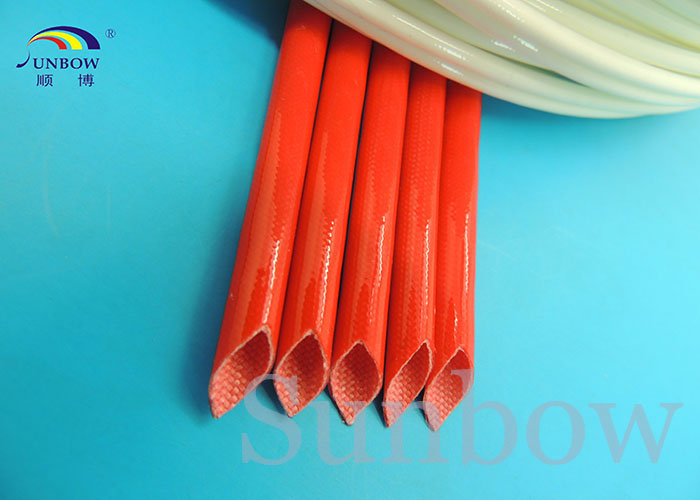

Silicone Rubber Braided Fiberglass Sleeving

SGS Silicone Fiberglass Braided Sleeving

Size(round inner diameter): 0.5MM 1MM 2MM 3MM 4MM 5MM 6MM 8MM 10MM 12MM 14MM 20MM 25mm 30MM and other special sizes Selectable

Length:Selectable
Withstand Temperature 200 Deg.C

Voltage Withstand: 4KV, 7KV, 10KV or more

SGS is fiberglass braided sleeving impregnated with silicone resin/rubber and cured by high temperature. The silicone resin/rubber coating and thermal treatment give SGS a very good softness and elasticty, excellent high temperature resistance and good dieletric strength. The process has no significant environmental hazard.

These sleevings are used for all types of high temperature rated electrical equipment and appliances as primary insulation or as secondary reinforcing and protection for conductors in high heat zones and in areas of likely mechanical damage.

The high-quality sleeving is made from braided fibreglass and coated with a compound silicone rubber.

It's non-fraying and has excellent resistance to oils, fluids and aggressive chemical agents.

These sleeves are widely used as cable protection sleevings in vehicle wiring harnesses.

Silicone Fiberglass Braided Sleeving Silicone Fiberglass Sleeving

Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.

Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr.2014 (Cert.No.E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.

Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

Due to business expansion, our factory moved to Gongming   street, Guangming New District in Shenzhen. It occupies nearly 10,000 square meters. We successfully passed ISO9001:2008 and TS16949 international quality management system, now ISO14001 system is also pushing.

Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of “Faith, Practical, and Responsive.” We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as  Philips , Whirlpool, Conair, Emerson, GE,Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises’ trust directly and indirectly ; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki , Nissan, Hyundai and so on.

We know that our task is long-term and arduous, but opportunities are aside with challenges. We “Sunbow” people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
