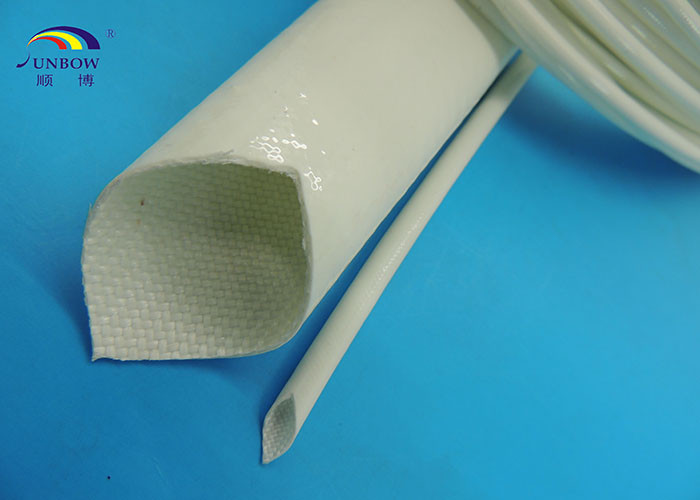

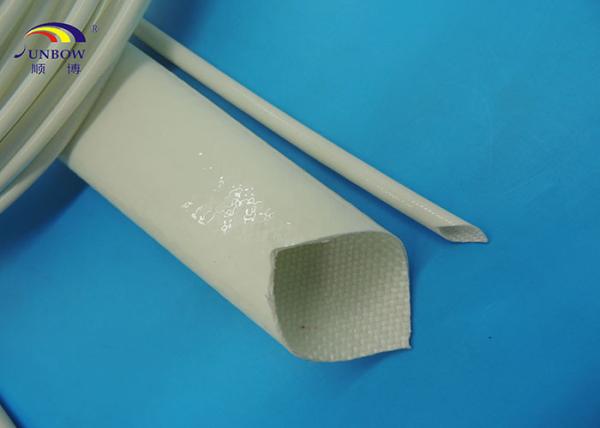

200℃ High Temperature Resistant Silicone Rubber Lacquer Silicone
Fiberglass Sleeve
1. Model Number: SB-SGS-70
Working temperature: 200ºC
2. Structure
The material content of the SB-SGS-70 is non-alkali fiberglass braided then coated with silicone resin
and treated in high temperature.
3. Usage
SB-SGS-70 sleeving with its good dielectric strength, flexibility and flame
retarding properties make it high performance qualities. It can be
widely used in insulated or partially insulated conductors, bus
bars, component leads, or assemblies of electrical components etc.
4. Specification
| Item | Performance | Note |
| Dielectric Breakdown Voltage KV AC | Minimum Average | ≥7.0 | Before Aging |
| Minimum Single Point | ≥5.0 |
| Minimum Average | ≥3.5 | 6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging |
| Minimum Single Point | ≥2.5 |
| No Breakdown | / | 1 KV in 2% Salt Water |
| Thermal Endurance | No Indication of Crack | OK | 1440 Hrs* 235±5ºC 235±5ºC 1440Hrs Aging |
| Fire Resistance | VW-1 | OK | UL 1441 |
5. Dimension
Inside Diameter | Wall Thickness (mm) | Standard Package (m/roll) |
Nominal (mm) | Tolerance (mm) |
φ0.5 | +0.2, -0.1 | ≥0.37 | 200 |
φ1.0 | +0.2, -0.1 | ≥0.37 | 200 |
φ1.5 | +0.2, -0.1 | ≥0.37 | 200 |
φ2.0 | +0.2, -0.1 | ≥0.37 | 200 |
φ2.5 | +0.3, -0.1 | ≥0.42 | 200 |
φ3.0 | +0.3, -0.1 | ≥0.42 | 200 |
φ4.0 | +0.3, -0.1 | ≥0.42 | 200 |
φ4.5 | +0.3, -0.1 | ≥0.51 | 100 |
φ5.0 | +0.3, -0.1 | ≥0.51 | 100 |
φ6.0 | +0.3, -0.1 | ≥0.51 | 100 |
φ7.0 | +0.3, -0.1 | ≥0.56 | 100 |
φ8.0 | +0.3, -0.1 | ≥0.56 | 100 |
φ9.0 | +0.3, -0.1 | ≥0.66 | 100 |
φ10.0 | +0.3, -0.1 | ≥0.66 | 100 |
φ12.0 | +1.0, -1.0 | ≥0.66 | 50 |
φ14.0 | +1.0, -1.0 | ≥0.66 | 50 |
φ16.0 | +1.0, -1.0 | ≥0.66 | 50 |
φ18.0 | +1.0, -1.0 | ≥0.66 | 50 |
φ20.0 | +1.0, -1.0 | ≥0.76 | 25 |
φ25.0 | +1.0, -1.0 | ≥0.76 | 25 |
φ30.0 | +1.0, -1.0 | ≥0.76 | 2 |
6. Package Information
0.5mm ~ 4.0mm, 200 meters/roll;
4.5mm ~ 10.0mm, 100 meters/roll;
12.0mm ~ 18.0mm, 50 meters/roll;
20.0mm ~ 30.0mm, 25 meters/roll.
Carton Size 35*35*60cm
7. Sunbow Statements
1) We promise our clients excellent quality, reasonable price,
perfect service and on-time delivery. We are committed to becoming
a globally-outstanding and recognized leader in insulation sleeving
industry, a preferred and qualified supplier of world-class
manufacture and a well-known enterprise all over the world;
2) We promise all our products supplied are of high quality,
environmental-friendly, safe and reliable. We always make our
contribution to human and social harmony;
3) We promise that all our products follow close to the line of all
applicable laws, rules and regulations, and any other related
requirements;
4) We improve our equipment performance, make innovation in our
technologies and upgrade our specifications continuously. We are
keeping improving our products quality, saving energy, pursueing
low-carbon economy and improving environmental-friendly and safe
performance of the products;
5) We are committed to providing our staffs with effective and
comprehensive training and corresponding resources to improve their
skills and their awareness of health, safety and environmental
protection. We apply ourselves to improve our staffs' professional
skills and quality to ensure that they can improve working
performance and career competitiveness.
8. Why Us
1) UL , RoHS , Reach approval
2) the only factory in China for all sizes and full colors to pass
UL, RoHS, Reach certifications
3) high quality non-alkali fiberglass yarn
4) cutting service and special customized service can be available
5) 3KV & 10KV tube of this type can be customized
6) ISO 9001 : 2008 TS 16949 standard factory manufacturer
7) high-tech enterprise in China
8) with 12-year manufacturing experience
9) factory direct sales
10) best price high quality product
11) quick delivery time
12) quick response for feedback
13) few complaints from customers
14) more competitive price for VIP customers
15) convenient situation near to seaport
