    Insulation Colorful Acrylic Coated Fiberglass Sleeving For Class F Motors

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-AGS
    Certification : Rohs, REACH
    Price : USD 0.03~4.69 / meter
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : With 5~9 working days
    • Product Details
    • Company Profile

    Insulation Colorful Acrylic Coated Fiberglass Sleeving For Class F Motors

    Insulation Colorful Acrylic Fiberglass Sleeving Acrylic-Glassfibre Sleeving for Class F Motors

    1. Description of goods

    Acrylic glassfiber sleeving is superior glassfiber braided then coated with acrylic resin and treated by suitable high temperature.

    Operating temperature: -40℃~155℃

    2. Characteristics

    1).Property: Insulation, oil resistance, flame resistance, flexibility, high temperature, etc. ;

    2). Avg. Voltage : 1.5KV. 2.5KV, 4.0KV ;

    3). Lowest voltage: 0.8KV, 1.5KV, 2.5KV;

    4). Working temperature: -40~155℃;

    5). Standard color: White;

    6). Environmental protection standard: ROHS;

    7). Package: SUNBOW standard packing or package upon your requirment.


    3. Range of application

    They are widely used in the insulation of Class F motor, generator, household electrical appliances, electroheat device, and special lamps and lanterns insulation protection.


    4. Specification

    Grade

    Heat Resistance

    Avg. Voltage

    Lowest

    Voltage

    Flame

    Resistance

    Insulation

    Performance

    Oil Resistance

    SB-AGS-15

    -40ºC~+155ºC

    1500V

    800V

    Yes

    Yes

    Yes

    (no water resistance)

    SB-AGS-25

    -40ºC~+155ºC

    2500V

    1500V

    Yes

    Yes

    Yes

    (no water resistance)

    SB-AGS-40

    -40ºC~+155ºC

    4000V

    2500V

    Yes

    Yes

    Yes

    (no water resistance


    5. Dimension

    Inside Diameter (mm)

    Minimum Thickness (mm)

    Nominal

    Tolerance

    Class A(4.0KV)

    Class B(2.5KV)

    0.5~2.5

    +0.25, -0.00

    0.38

    0.20

    3.0~4.5

    +0.30, -0.00

    0.45

    0.23

    5.0~6.0

    +0.40, -0.00

    0.45

    0.28

    7.0~9.0

    +0.55, -0.00

    0.50

    0.32

    10.0~14.0

    +0.75, -0.00

    0.60

    0.40

    15.0~25.0

    +0.85, -0.00

    0.64

    0.43


    6. Color:

    Standard color is white, other color available upon request .

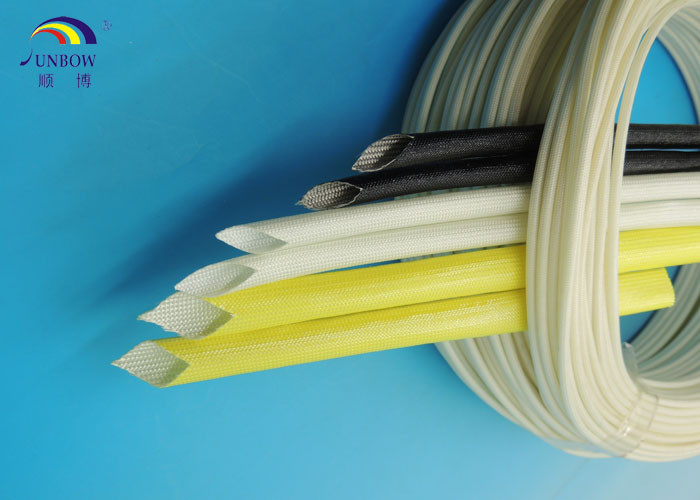

    7. Pictures of goods

    Insulation Colorful Acrylic Coated Fiberglass Sleeving For Class F MotorsInsulation Colorful Acrylic Coated Fiberglass Sleeving For Class F MotorsInsulation Colorful Acrylic Coated Fiberglass Sleeving For Class F MotorsInsulation Colorful Acrylic Coated Fiberglass Sleeving For Class F Motors

    Insulation Colorful Acrylic Coated Fiberglass Sleeving For Class F MotorsInsulation Colorful Acrylic Coated Fiberglass Sleeving For Class F Motors

    8. Packing informations

    Size 0.5mm to 4.5mm 200 m/roll;

    Size 5.0mm to 12.0mm 100 m/roll;

    Size 14.0mm to 25.0mm 50 m/roll;

    (1m/segment upon request.)


    9. Transportation

    Courier: UPS, DHL, Fedex, TNT, GLE, Aramex, etc.

    Sea transportation, Air transportation, etc.


    10. Our Services

    1). 5~7 quick time production;

    2). One year quality guarantee;

    3). Prompt feedback;

    4). 24 hours on line service.

    5). Free sample for your approval

    6). OEM production

    7). ODM ability

    8). OEM package


    11. FAQ

    Q : Are you a factory or trading company ?

    A: We are a factory, can offer best quality product and reasonable price for you

    Q: Can you accept sample order?

    A: Yes, we accept samples with little and reasonable charge.

    Q: What is your MOQ?

    A: Normally, 5000 Meters per color.

    Q: What is your delivery time?Can we short it in 7 days or less?

    A: 3 days for sample, 3-20 days for mass production. (depend quantity)

    Q: What is your payment terms?

    A: T/T, Western Union

    Q: How can I get my order?How can I know you sent the goods.

    A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.

    Q:How about your quality?

    A: Try a small order, you will have your judgement!
