    Insulation Acrylic Fiberglass Sleeving / Fiber Glass Wire Sleeve for Electrical Lamp

    Ask Lasest Price
    Brand Name : Sunbow
    Model Number : SB-AGS-40
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 600000 Meters / Month
    Delivery Time : 3 ~ 7 Working Days
    Certification : ROHS REACH
    • Product Details
    • Company Profile

    Insulation Acrylic Fiberglass Sleeving / Fiber Glass Wire Sleeve for Electrical Lamp

    High Quality White Acrylic Fiberglass Sleeving Best Supply to Special Lamps


    1. Product Description

    High Quality White Acrylic Fiberglass Sleeving Best Supply to Special Lamps is braided with superior fiberglass, then coated with acrylic resin and treated in suitable high temperature.


    2. Application

    It is widely used in Class F motors, household electrical appliances, electrical heat devices, and special lamps and lanterns for insulation protection.


    3. Model Number: SB-AGS-40

    Working temperature: -40ºC ~ 155ºC


    4. Performance

    Grade

    Heat Resistance

    Avg. Voltage

    Lowest

    Voltage

    Flame

    Resistance

    Insulation

    Performance

    Oil Resistance

    SB-AGS-15

    -40ºC~+155ºC

    1500V

    800V

    Yes

    Yes

    Yes

    (no water resistance)

    SB-AGS-25

    -40ºC~+155ºC

    2500V

    1500V

    Yes

    Yes

    Yes

    (no water resistance)

    SB-AGS-40

    -40ºC~+155ºC

    4000V

    2500V

    Yes

    Yes

    Yes

    (no water resistance)


    5. Dimension


    Inside Diameter (mm)

    Minimum Thickness (mm)

    Nominal

    Tolerance

    Class A(4.0KV)

    Class B(2.5KV)

    0.5~2.5

    +0.25, -0.00

    0.38

    0.20

    3.0~4.5

    +0.30, -0.00

    0.45

    0.23

    5.0~6.0

    +0.40, -0.00

    0.45

    0.28

    7.0~9.0

    +0.55, -0.00

    0.50

    0.32

    10.0~14.0

    +0.75, -0.00

    0.60

    0.40

    15.0~25.0

    +0.85, -0.00

    0.64

    0.43


    6. Package Information


    0.5mm ~ 4.0mm, 200 meters/roll;

    4.5mm ~ 10.0mm, 100 meters/roll;

    12.0mm ~ 18.0mm, 50 meters/roll;

    20.0mm ~ 30.0mm, 25 meters/roll.

    Carton Size 35*35*60cm


    7. Competitve Advantages


    1) ISO 9001 : 2008 TS 16949 standard factory manufacturer

    2) high-tech enterprise in China

    3) with 12-year manufacturing experience

    4) factory direct sales

    5) best price high quality product

    6) quick delivery time

    7) quick response for feedback

    8) few complaints from customers

    9) more competitive price for VIP customers

    10) convenient situation near to seaport

    11) flame resistant tube of this type is available

    12) high quality non-alkali fiberglass yarn

    13) free samples are available


    8. Company Statements

    1) We promise our clients excellent quality, reasonable price, perfect service and on-time delivery. We are committed to becoming a globally-outstanding and recognized leader in insulation sleeving industry, a preferred and qualified supplier of world-class manufacture and a well-known enterprise all over the world;


    2) We promise all our products supplied are of high quality, environmental-friendly, safe and reliable. We always make our contribution to human and social harmony;


    3) We promise that all our products follow close to the line of all applicable laws, rules and regulations, and any other related requirements;


    4) We improve our equipment performance, make innovation in our technologies and upgrade our specifications continuously. We are keeping improving our products quality, saving energy, pursueing low-carbon economy and improving environmental-friendly and safe performance of the products;


    5) We are committed to providing our staffs with effective and comprehensive training and corresponding resources to improve their skills and their awareness of health, safety and environmental protection. We apply ourselves to improve our staffs' professional skills and quality to ensure that they can improve working performance and career competitiveness.

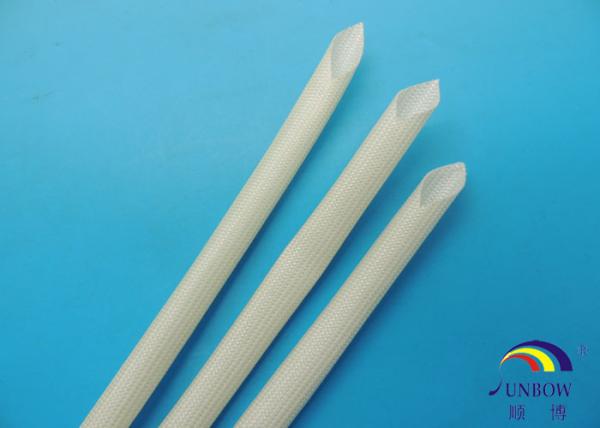

    9. Products Show


    Insulation Acrylic Fiberglass Sleeving / Fiber Glass Wire Sleeve for Electrical LampInsulation Acrylic Fiberglass Sleeving / Fiber Glass Wire Sleeve for Electrical LampInsulation Acrylic Fiberglass Sleeving / Fiber Glass Wire Sleeve for Electrical LampInsulation Acrylic Fiberglass Sleeving / Fiber Glass Wire Sleeve for Electrical LampInsulation Acrylic Fiberglass Sleeving / Fiber Glass Wire Sleeve for Electrical LampInsulation Acrylic Fiberglass Sleeving / Fiber Glass Wire Sleeve for Electrical Lamp


    Buying note: Please advise the harness of this sleeving you require. and where to use. Please take a picture if necessary.
