Heat Resistant Custom Extrusion Silicone Rubber Tube 200C Black Clear White

    Buy cheap Heat Resistant Custom Extrusion Silicone Rubber Tube 200C Black Clear White from wholesalers

    Buy cheap Heat Resistant Custom Extrusion Silicone Rubber Tube 200C Black Clear White from wholesalers
    • Buy cheap Heat Resistant Custom Extrusion Silicone Rubber Tube 200C Black Clear White from wholesalers
    • Buy cheap Heat Resistant Custom Extrusion Silicone Rubber Tube 200C Black Clear White from wholesalers
    • Buy cheap Heat Resistant Custom Extrusion Silicone Rubber Tube 200C Black Clear White from wholesalers
    • Buy cheap Heat Resistant Custom Extrusion Silicone Rubber Tube 200C Black Clear White from wholesalers

    Heat Resistant Custom Extrusion Silicone Rubber Tube 200C Black Clear White

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-SRT
    Certification : UL, ROHS, REACH
    Price : 0.1-5
    Supply Ability : 10000000meters per month
    Delivery Time : 6-10 days
    • Product Details
    • Company Profile

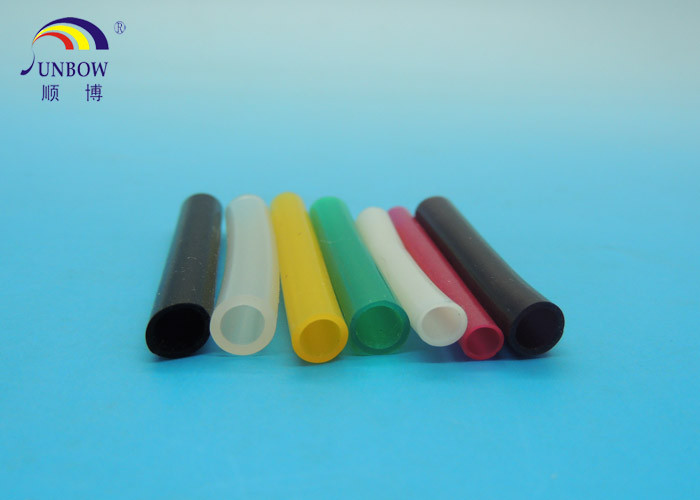

    Heat Resistant Custom Extrusion Silicone Rubber Tube 200C Black Clear White

    Custom Silicone Rubber Extrusion Silicone Rubber Tube 200C Black Clear White


    Model Number: SB-SRT


    Usage

    Silicone rubber tubing with service temperature -30ºC to 250ºC. They are commonly used in contact with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation.

    It can be installed in coffee maker, water dispenser, electric water bottle, car wire hardness, or used in electric insulation for semiconductor etc.


    Specification

    Performance

    Test method

    Performance index

    Dielectric strength (kv/mm)

    GB/T 1048

    ≥18

    Volume resistivity (Ω/cm)

    GB/T 1410

    ≥1x1014

    Tearing strength (MPa)

    GB/T 1040

    ≥3.5 MPa

    Elongation (%)

    GB/T 1040

    ≥210

    Fire resistance(flame retarded products)

    GB/T 2408

    FV-1


    Dimension of 2.5kv 4kv 6kv 7kv breakout voltage 200ºC silicone rubber tube for dielectric strength

    Size

    Tolerance(mm)

    Thickness and tolerance



    2500V(mm)

    4000V(mm)

    6000V(mm)

    7000V(mm)

    φ0.8

    0.8±0.10

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ1.0

    1.0±0.10

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ1.5

    1.5±0.10

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ2.0

    2.0±0.10

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ2.5

    2.5±0.10

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ3.0

    3.0±0.10

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ3.5

    3.5±0.10

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ4.0

    4.0±0.10

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ4.5

    4.5±0.10

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ5.0

    5.0±0.20

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ5.5

    5.5±0.20

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ6.0

    6.0±0.20

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ6.5

    6.5±0.20

    0.50±0.10

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ7.0

    7.0±0.20

    —

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ7.5

    7.5±0.20

    —

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ8.0

    8.0±0.25

    —

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ9.0

    9.0±0.25

    —

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ10.0

    10.0±0.25

    —

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ11.0

    11.0±0.30

    —

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ12.0

    12.0±0.30

    —

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ13.0

    13.0±0.30

    —

    1.00±0.15

    1.50±0.20

    2.00±0.25

    φ14.0

    14.0±0.30

    —

    —

    1.50±0.20

    2.00±0.25

    φ15.0

    15.0±0.30

    —

    —

    1.50±0.20

    2.00±0.25

    φ20.0

    20.0±0.30

    —

    —

    —

    2.50±0.3


    Note: Default color is transparent, other color can be customized upon request.


    Why choose Sunbow? Competitive point from SUNBOW,

    1) ISO 9001 : 2008 factory manufacturer,

    2) high-tech enterprise and TS 16949 standard in China,

    3) 12-year manufacturing experience,

    4) factory direct sales and stardard after-sales service procedure,

    5) best price high quality product,

    6) quick delivery time for sample or formal orders,

    7) quick response for feedback in email or calls,

    8) few complaints from customers,

    9) more competitive price for VIP customers,

    10) convenient situation near to Shenzhen seaport,

    11) flame resistant feature is available.
