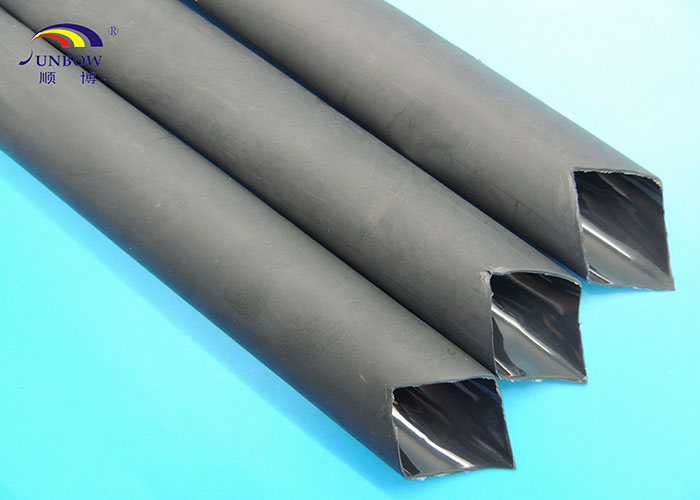

    Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles

    Ask Lasest Price
    Brand Name : Sunbow
    Model Number : SB-SBRS-(3X)GLW
    Certification : UL(UL No.: E360625), RoHS, Reach, ISO9001, TS16949
    Price : USD0.09-16.4 per meter
    Payment Terms : T/T,paypal
    Supply Ability : 9,000,000 meters per month
    • Product Details
    • Company Profile

    Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles

    Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles


    Advantage:

    Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles

    1. Great production ability as high as 9,000,000 meters/month
    2. Competitive price with quality products
    3. Whole color UL certificated with inner diameter 3.2-39mm

    Characteristics:

    Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles

    Working temperature: -45ºC ~ 125ºC
    Shrink temperature: 70ºC ~ 125ºC
    Shrink ratio: 3:1

    Structure:
    Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles adopts flame retardant, cross-linked polyolefin material with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. The inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.

    Usage: Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles

    Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles is widely used in manufacturing of electrical and electronics, communications, automobiles, shipping, aircraft, etc.

    Standard: Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles
    Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4

    Dimension: Soft Heavy Adhesive-Lined Polyolefin Heat Shrinable Tube Flame-Retardant for Automobiles


    Inner Diameter

    As Supplied (mm)

    After Recovery(mm)

    Package

    (inch)

    (mm)

    ID

    Max ID

    Total Wall Thickness

    Glue Thickness

    (m/roll)

    (m/pc)

    1/8

    φ3.2

    ≥3.2

    ≤1.00

    0.90±0.30

    0.45±0.20

    200

    3/16

    φ4.8

    ≥4.8

    ≤1.60

    1.20±0.30

    0.55±0.20

    100

    1/4

    φ6.4

    ≥6.4

    ≤2.20

    1.25±0.30

    0.55±0.20

    100

    5/16

    φ7.9

    ≥7.9

    ≤2.70

    1.35±0.30

    0.65±0.20

    100

    3/8

    φ9.5

    ≥9.5

    ≤3.20

    1.35±0.30

    0.65±0.20

    50

    1.22

    1/2

    φ12.7

    ≥12.7

    ≤4.20

    1.55±0.40

    0.75±0.20

    1.22

    5/8

    φ15.0

    ≥15.0

    ≤5.20

    1.65±0.40

    0.75±0.20

    1.22

    3/4

    φ19.1

    ≥19.1

    ≤6.30

    1.90±0.40

    0.85±0.20

    1.22

    1

    φ25.4

    ≥25.4

    ≤8.50

    2.00±0.40

    0.90±0.20

    1.22

    1-1/4

    φ30.0

    ≥30.0

    ≤10.20

    2.05±0.40

    0.90±0.20

    1.22

    1-1/2

    φ39.0

    ≥39.0

    ≤13.50

    2.35±0.40

    1.05±0.20

    1.22


    Color:Standard color is black,other colors available upon request
