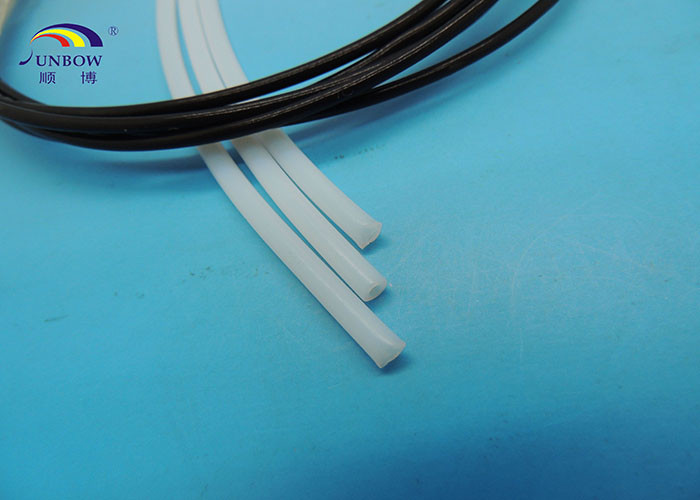

    White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ~ 260ºC

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-PTFE
    Certification : ROHS, REACH, UL
    Price : USD$0.05~$3.15/M
    Payment Terms : Western Union, T/T
    Supply Ability : 30,000M/day
    Delivery Time : 5~8 work days
    • Product Details
    • Company Profile

    White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ~ 260ºC

    High temperature PTFE hose PTFE products for electric products


    Advantages:

    1. Anti-corrosion in all kinds of chemicals including nitric acid & aqua fortis.
    2. Low friction.

    3. Virtually no lubrication requirement.

    4. Light weight.

    5. Resistant to corrosion and abrasion.

    6. Stable chemical properties, Oil resistance.

    7. High temperature resistance,Low temperature resistance,water resistance and so on.
    8. Working temperature:-55~+260°C.
    9. Good dielectric in mediums.

    10. Made of high-speed mixing polytetrafluoroethylene resin and certain filling resin.
    11. Soft and formable.

    12. Outstanding chemical properties etc.


    White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ~ 260ºC

    Model number:SB-PTFE

    Operating temperature: -80ºC ~ 260ºC


    Characteristics

    1. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);

    2. High voltage resistance (45kv/mm)


    Usage

    PTFE tube manufacture by extrusion process with imported high quality PTFE resin. It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. It widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.


    Dimension

    AWG

    Inside Diameter (mm)

    Outside Diameter (mm)(S)

    Outside Diameter (mm)(T)

    Outside Diameter (mm)(L)

    Standard Package

    (m/roll)

    30

    0.30±0.10

    0.80±0.10

    0.70±0.10

    0.64±0.10

    305

    28

    0.38±0.10

    0.88±0.10

    0.78±0.10

    0.72±0.10

    305

    26

    0.46±0.10

    0.96±0.10

    0.86±0.10

    0.80±0.10

    305

    24

    0.56±0.10

    1.16±0.10

    1.06±0.10

    0.90±0.10

    305

    23

    0.66±0.10

    1.26±0.10

    1.16±0.10

    1.00±0.10

    305

    22

    0.71±0.10

    1.31±0.10

    1.21±0.10

    1.05±0.10

    305

    21

    0.81±0.10

    1.41±0.10

    1.31±0.10

    1.15±0.10

    305

    20

    0.86±0.10

    1.66±0.10

    1.46±0.10

    1.20±0.10

    305

    19

    0.96±0.20

    1.76±0.20

    1.56±0.20

    1.30±0.20

    200

    18

    1.07±0.20

    1.87±0.20

    1.67±0.20

    1.41±0.20

    200

    17

    1.19±0.20

    1.99±0.20

    1.79±0.20

    1.53±0.20

    200

    16

    1.34±0.20

    2.14±0.20

    1.94±0.20

    1.68±0.20

    153

    15

    1.50±0.20

    2.30±0.20

    2.10±0.20

    1.84±0.20

    153

    14

    1.68±0.20

    2.48±0.20

    2.28±0.20

    2.08±0.20

    100

    13

    1.93±0.20

    2.73±0.20

    2.53±0.20

    2.33±0.20

    100

    12

    2.16±0.25

    2.96±0.25

    2.76±0.25

    2.56±0.25

    100

    11

    2.41±0.25

    3.21±0.25

    3.01±0.25

    2.81±0.25

    150

    10

    2.69±0.25

    3.49±0.25

    3.29±0.25

    3.09±0.25

    150

    9

    3.00±0.25

    4.00±0.25

    3.80±0.25

    3.40±0.25

    150

    8

    3.38±0.25

    4.38±0.25

    4.18±0.25

    3.78±0.25

    100

    7

    3.76±0.25

    4.76±0.25

    4.56±0.25

    4.16±0.25

    100

    6

    4.22±0.25

    5.22±0.25

    4.92±0.25

    4.80±0.25

    100

    5

    4.72±0.25

    5.72±0.25

    5.42±0.25

    5.32±0.25

    50

    4

    5.28±0.30

    6.28±0.30

    6.02±0.30

    5.88±0.25

    1

    3

    5.94±0.30

    6.94±0.30

    6.74±0.30

    6.54±0.25

    1

    2

    6.68±0.30

    7.68±0.30

    7.48±0.30

    7.28±0.25

    1

    1

    7.46±0.30

    8.46±0.30

    8.26±0.30

    8.06±0.25

    1

    0

    8.38±0.30

    9.38±0.30

    9.18±0.30

    8.98±0.25

    1


    Special thick wall thickness PTFE tube with wall thickness 0.5mm, 1mm, 1.5mm, 2mm

    Inner Diameter(mm)

    Outside Diameter (mm) Wall Thickness =0.5mm

    Outside Diameter (mm) Wall Thickness =1mm

    Outside Diameter (mm)

    Wall Thickness =1.5mm

    Outside Diameter (mm)

    Wall Thickness =2.0mm

    1

    2±0.10

    3±0.10

    4±0.10

    5±0.10

    2

    3±0.10

    4±0.10

    5±0.10

    6±0.10

    3

    4±0.10

    5±0.10

    6±0.10

    7±0.10

    4

    5±0.10

    6±0.10

    7±0.10

    8±0.10

    5

    6±0.10

    7±0.10

    8±0.10

    9±0.10

    6

    7±0.10

    8±0.10

    9±0.10

    10±0.10

    7

    8±0.10

    9±0.10

    10±0.10

    11±0.10

    8

    9±0.10

    10±0.10

    11±0.10

    12±0.10

    9

    10±0.20

    11±0.20

    12±0.20

    13±0.20

    10

    11±0.20

    12±0.20

    13±0.20

    14±0.20

    11

    12±0.20

    13±0.20

    14±0.20

    15±0.20

    12

    13±0.20

    14±0.20

    15±0.20

    16±0.20

    14

    15±0.20

    16±0.20

    17±0.20

    18±0.20


    Specification

    Item

    Standard

    Item

    Standard

    Relative Density

    2.14~2.20

    Melting Point (ºC)

    327

    Tensile Strength (MPa)

    ≥25

    Operating Temperature (0C)

    -80~260

    Stretch Yield Strength (MPa)

    ≥11

    Oxygen index(%)

    >90

    Elongation (%)

    ≥300

    Water Absorption (%)

    <0.01

    Arc Resistance

    >300

    Linear Expansion Coefficient (×105/ ºC)21~1000C

    10

    Shore Hardness (D)

    59~63

    breakdown strength (kv/mm)

    ≥45

    volume resistance (Ω.cm)

    1×1016
