Eco-friendly Rubber Silicone Fiberglass Sleeves Multi Color for
Customized 0.5mm ~ 30.0mm
1. Product Information

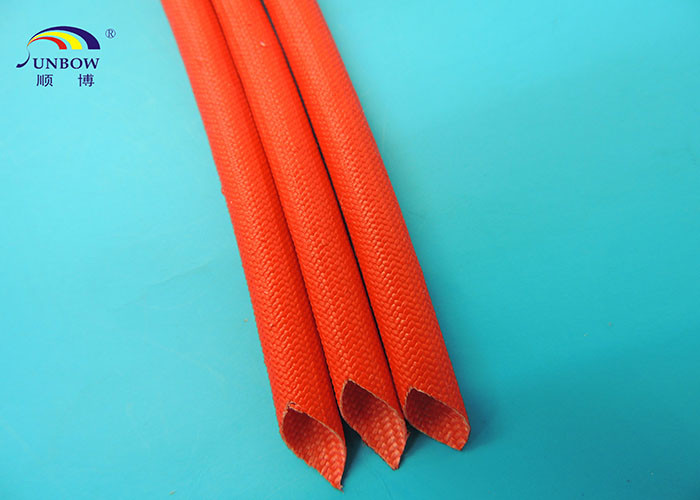

Silicone Fiberglass Sleeve is non-alkali fiberglass braided then coated with silicone resin
and treated in high temperature.
2. Model Number: SB-SGS-12
Working temperature: 200ºC
3. Specification
Item | Performance | Note |
Dielectric Breakdown Voltage KV AC | Minimum Average | ≥1.2 | Before Aging |
Thermal Endurance | No Indication of Crack | OK | 6 Hrs* 245±5ºC 245±5ºC 6Hrs Aging |
Fire Resistance | VW-1 | OK | UL 1441 |
4. Usage
SB-SGS-12 sleeving with its good dielectric strength, flexibility and flame
retarding properties make it high performance qualities. It can be
widely used in insulated or partially insulated conductors, bus
bars, component leads, or assemblies of electrical components etc.
5. Dimension
Inside Diameter | Wall Thickness (mm) | Standard Package (m/roll) |
Nominal(mm) | Tolerance (mm) |
φ0.5 | +0.2, -0.1 | ≥0.27 | 200 |
φ1.0 | +0.2, -0.1 | ≥0.27 | 200 |
φ1.5 | +0.2, -0.1 | ≥0.27 | 200 |
φ2.0 | +0.2, -0.1 | ≥0.27 | 200 |
φ2.5 | +0.3, -0.1 | ≥0.32 | 200 |
φ3.0 | +0.3, -0.1 | ≥0.32 | 200 |
φ4.0 | +0.3, -0.1 | ≥0.37 | 200 |
φ4.5 | +0.3, -0.1 | ≥0.37 | 100 |
φ5.0 | +0.3, -0.1 | ≥0.37 | 100 |
φ6.0 | +0.3, -0.1 | ≥0.37 | 100 |
φ7.0 | +0.3, -0.1 | ≥0.42 | 100 |
φ8.0 | +0.3, -0.1 | ≥0.42 | 100 |
φ9.0 | +0.3, -0.1 | ≥0.52 | 100 |
φ10.0 | +0.3, -0.1 | ≥0.52 | 100 |
φ12.0 | +1.0, -1.0 | ≥0.52 | 50 |
φ14.0 | +1.0, -1.0 | ≥0.52 | 50 |
φ16.0 | +1.0, -1.0 | ≥0.52 | 50 |
φ18.0 | +1.0, -1.0 | ≥0.52 | 50 |
φ20.0 | +1.0, -1.0 | ≥0.62 | 25 |
φ25.0 | +1.0, -1.0 | ≥0.62 | 25 |
φ30.0 | +1.0, -1.0 | ≥0.62 | 25
|
6. Package Information
0.5mm ~ 4.0mm, 200 meters/roll;
4.5mm ~ 10.0mm, 100 meters/roll;
12.0mm ~ 18.0mm, 50 meters/roll;
20.0mm ~ 30.0mm, 25 meters/roll.
Carton Size 35*35*60cm
7. Competitive Advantages
1) ISO 9001 : 2008 TS 16949 standard factory manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
11) UL , RoHS , Reach approval
12) the only factory in China for all sizes and full colors to pass
UL, RoHS, Reach certifications
13) high quality non-alkali fiberglass yarn
14) cutting service and special customized service can be available
15) 3KV & 10KV tube of this type can be customized
