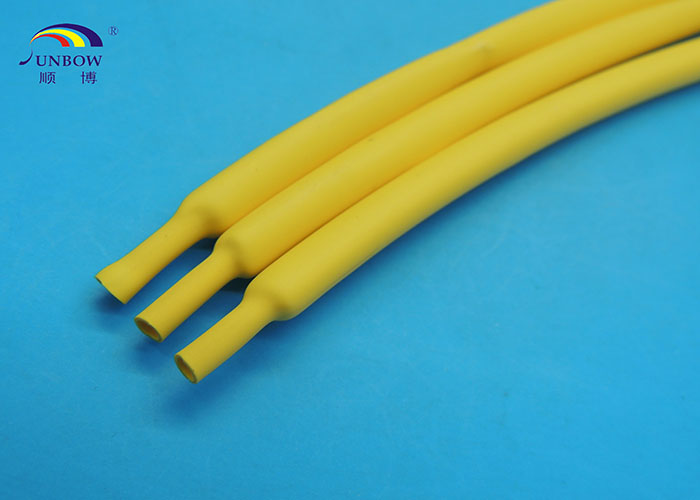

    RoHS Ecofriendly Flexible Polyolefin Heat Shrink Tubing Flame Retardant

    Ask Lasest Price
    Brand Name : Sunbow
    Model Number : SB-RSFR-H
    Certification : UL, ROHS, REACH
    Price : US$0.01 - 9.99 per meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 9000000 meter per year
    • Product Details
    • Company Profile

    RoHS Ecofriendly Flexible Polyolefin Heat Shrink Tubing Flame Retardant

    RoHS Ecofriendly Flexible Polyolefin Heat Shrink Tubing Flame Retardant


    Model Number: SB-RSFR-H

    Working temperature: -45ºC ~ 125ºC


    Structure

    H alogen free flame-retardant heat shrinkable tube is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.


    Usage

    It is mainly used in electronics, telecommunication, automobiles, shipping and other manufacturing industries.


    Characteristics

    1. Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
    2. Shrink ratio: 2:1
    3. Shrink temperature: 84ºC ~ 120ºC


    Physical Technical Data


    PropertyTest MethodTypical Performance
    Tensile strengthASTM D267110.4MPa
    Elongation(%)ASTM D2671200
    Tensile strength after heat agingUL 224 158C*168hrs≥7.3
    Elongation after heat agingUL 224 158C*168hrs≥100
    Heat shockUL 224 250C*4hrsNo dripping and no cracking

    Electrical Technical Data


    PropertyTest MethodTypical Performance
    Dielectric strengthIEC 243≥15KV/mm
    Volume resistivityIEC 93≥1*1014Ω.cm

    Chemical Technical Data


    PropertyTest MethodTypical Performance
    Corrosion actionUL 224 158C*168hrsPass
    Copper compatibilityUL 224 158C*168hrsPass

    Dimension

    1) halogen free flame-retardant heat shrinkable tube

    SizeAs SuppliedAfter Recovery

    Standard

    Package

    (Inch)(mm)Internal Diameter(mm)

    Internal Diameter

    Max(mm)

    Wall

    Thickness

    Nom(mm)

    Spool Length

    (M/Spool)

    3/640.81.1±0.20.500.22400
    1/161.01.5±0.20.650.28400
    1.52.0±0.20.850.32400
    3/322.02.5±0.21.000.35400
    2.53.0±0.21.300.38400
    1/83.03.5±0.21.500.40400
    3.54.0±0.21.800.42400
    4.04.5±0.22.000.45400
    3/164.55.0±0.22.300.50200
    5.05.5±0.22.500.55200
    1/46.06.5±0.23.00.55200
    5/167.07.5±0.33.50.55100
    8.08.5±0.34.00.60100
    3/89.09.5±0.34.50.60100
    10.010.5±0.35.00.60100
    11.011.5±0.35.50.60100
    1/212.012.5±0.36.00.60100
    13.013.5±0.36.50.65100
    14.014.5±0.37.00.65100
    5/815.015.5±0.47.50.70100
    16.016.5±0.48.00.70100
    17.017.5±0.48.50.70100
    3/418.019.0±0.59.00.80100
    20.021.0±0.510.00.80100
    22.023.0±0.511.00.80100
    125.026.0±0.512.50.9050
    28.029.0±0.514.00.9050
    1-1/430.031.5±1.015.00.9550
    35.036.5±1.017.51.0050
    1-1/240.041.5±1.020.01.0050
    45.046.5±1.022.51.0025
    250.0≥5025.01.0025
    60.0≥6031.01.3025
    70.0≥7036.01.3025
    380.0≥8041.01.4625
    90.0≥9046.01.4625
    4100.0≥10051.01.4625
    5120.0≥12061.01.5625
    6150.0≥15076.01.5625
    7180.0≥18091.01.5625

    2) halogen free flame-retardant ultra thin heat shrinkable tube

    Inner

    Diameter

    As Supplied(mm)After Recovery(mm)Package

    Application

    Range (mm)

    Inner DiameterWall ThicknessInner DiameterWall Thickness(m/spool)
    Φ0.6CB0.9±0.20.13±0.05≤0.400.20±0.102000.4~0.7
    Φ0.8CB1.0±0.20.13±0.05≤0.500.20±0.102000.6~0.8
    Φ1.0CB1.40±0.200.13±0.05≤0.650.20±0.102000.7~1.0
    Φ1.5CB1.90±0.200.13±0.05≤0.850.20±0.102000.9~1.4
    Φ2.0CB2.40±0.200.13±0.05≤1.000.22±0.102001.1~1.8
    Φ2.5CB2.90±0.200.13±0.05≤1.300.25±0.102001.4~2.3
    Φ3.0CB3.40±0.200.13±0.05≤1.500.28±0.102001.6~2.7
    Φ3.5CB3.90±0.200.13±0.05≤1.800.28±0.102001.9~2.3
    Φ4.0CB4.40±0.200.15±0.05≤2.000.30±0.102002.1~3.6
    Φ4.5CB4.90±0.200.15±0.05≤2.300.30±0.101002.4~4.0
    Φ5.0CB5.50±0.200.15±0.05≤2.500.32±0.101002.6~4.5
    Φ6.0CB6.50±0.200.15±0.05≤3.000.32±0.101003.1~5.4
    Φ7.0CB7.50±0.300.15±0.05≤3.500.32±0.101003.7~6.3
    Φ8.0CB8.50±0.300.15±0.05≤4.000.32±0.101004.2~7.2
    Φ9.0CB9.50±0.300.15±0.05≤4.500.35±0.101004.7~8.0
    Φ10CB10.50±0.300.15±0.05≤5.000.35±0.101005.2~9.0
    Φ11CB11.50±0.300.18±0.05≤5.500.40±0.101005.7~10.0
    Φ12CB12.50±0.300.20±0.05≤6.000.40±0.101006.2~11.0
    Φ13CB13.50±0.300.20±0.05≤6.500.40±0.101006.7~12.0
    Φ14CB14.50±0.300.20±0.05≤7.000.40±0.101007.3~13.0
    Φ15CB15.50±0.400.20±0.05≤7.500.40±0.101007.8~14.0
    Φ16CB16.50±0.400.22±0.05≤8.000.40±0.101008.3~15.0
    Φ17CB17.50±0.400.22±0.05≤8.500.40±0.101008.8~16.0
    Φ18CB18.50±0.400.22±0.05≤9.000.42±0.101009.3~17.0
    Φ20CB20.50±0.500.25±0.05≤10.00.45±0.1010010.5~19.0
    Φ22CB22.50±0.500.25±0.05≤11.00.45±0.1010011.5~20.5

    Color: Standard color is black (other color available upon request).
