    UL Requirement flame retardant heat shrink wrap tubing 20.0mm Black

    Ask Lasest Price
    Brand Name : Sunbow
    Model Number : SB-RSFR-125H
    Certification : UL(UL No.: E360625), RoHS, Reach, ISO9001:2008, TS16949
    Price : US$0.038/M - US$14.999/M
    Payment Terms : T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 9000000 meter/year
    • Product Details
    • Company Profile

    UL Requirement flame retardant heat shrink wrap tubing 20.0mm Black


    UL Requirement flame retardant heat shrink wrap tubing 20.0mm Black


    Model number: SB-RSFR-125H

    Working temperature: -45ºC ~ 125ºC


    Structure:

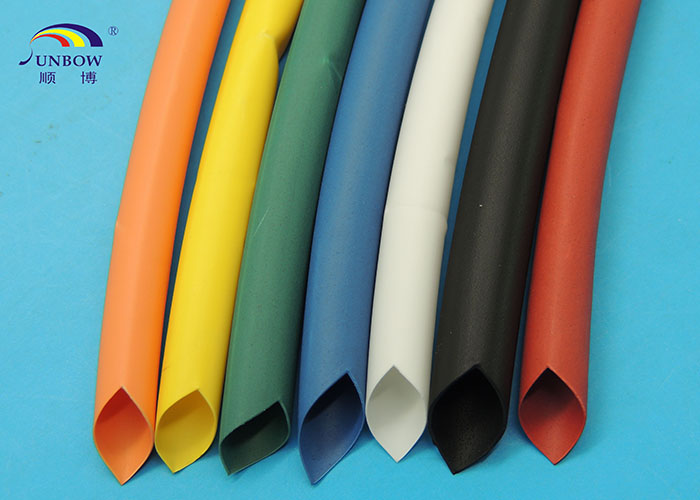

    UL Requirement Heat Shrinkable Flexible Polyolefin Tubing 20.0mm Black is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.


    Usage:

    UL Requirement Heat Shrinkable Flexible Polyolefin Tubing 20.0mm Black is mainly used in electronics, telecommunication, automobiles, shipping and other manufacturing industries.


    Characteristics:

    • Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
    • Shrink ratio: 2:1
    • Shrink temperature: 84ºC ~ 120ºC

    Physical technical data:

    PropertyTest MethodTypical Performance
    Tensile strengthASTM D267110.4MPa
    Elongation(%)ASTM D2671200
    Tensile strength after heat agingUL 224 158C*168hrs≥7.3
    Elongation after heat agingUL 224 158C*168hrs≥100
    Heat shockUL 224 250C*4hrsNo dripping and no cracking

    Electrical technical data:

    PropertyTest MethodTypical Performance
    Dielectric strengthIEC 243≥15KV/mm
    Volume resistivityIEC 93≥1*1014Ω.cm

    Chemical technical data:

    PropertyTest MethodTypical Performance
    Corrosion actionUL 224 158C*168hrsPass
    Copper compatibilityUL 224 158C*168hrsPass

    Dimension:

    SizeAs SuppliedAfter RecoveryStandard Package
    (Inch)(mm)Internal Diameter(mm)Internal Diameter Max(mm)Wall Thickness Nom(mm)Spool Length(M/Spool)
    3/640.81.1±0.20.500.22400
    1/161.01.5±0.20.650.28400
    1.52.0±0.20.850.32400
    3/322.02.5±0.21.000.35400
    2.53.0±0.21.300.38400
    1/83.03.5±0.21.500.40400
    3.54.0±0.21.800.42400
    4.04.5±0.22.000.45400
    3/164.55.0±0.22.300.50200
    5.05.5±0.22.500.55200
    1/46.06.5±0.23.00.55200
    5/167.07.5±0.33.50.55100
    8.08.5±0.34.00.60100
    3/89.09.5±0.34.50.60100
    10.010.5±0.35.00.60100
    11.011.5±0.35.50.60100
    1/212.012.5±0.36.00.60100
    13.013.5±0.36.50.65100
    14.014.5±0.37.00.65100
    5/815.015.5±0.47.50.70100
    16.016.5±0.48.00.70100
    17.017.5±0.48.50.70100
    3/418.019.0±0.59.00.80100
    20.021.0±0.510.00.80100
    22.023.0±0.511.00.80100
    125.026.0±0.512.50.9050
    28.029.0±0.514.00.9050
    1-1/430.031.5±1.015.00.9550
    35.036.5±1.017.51.0050
    1-1/240.041.5±1.020.01.0050
    45.046.5±1.022.51.0025
    250.0≥5025.01.0025
    60.0≥6031.01.3025
    70.0≥7036.01.3025
    380.0≥8041.01.4625
    90.0≥9046.01.4625
    4100.0≥10051.01.4625
    5120.0≥12061.01.5625
    6150.0≥15076.01.5625
    7180.0≥18091.01.5625

    Color: Standard color is black (other color available upon request).


    UL Requirement Heat Shrinkable Flexible Polyolefin Tubing 20.0mm Black
