    Dual Wall Adhesive lined Polyolefin Heat Shrink Tubing Waterproof

    Ask Lasest Price
    Brand Name : Sunbow
    Model Number : SB-SBRS-3XG
    Certification : UL(UL No.: E360625), RoHS, Reach, TS16949
    Price : US$0.35/M - US$15.56/M
    Payment Terms : T/T, PayPal 100% in advance
    Supply Ability : 9000000 M/Year
    • Product Details
    • Company Profile

    Dual Wall Adhesive lined Polyolefin Heat Shrink Tubing Waterproof

    Dual Wall Adhesive lined Polyolefin Heat Shrink Tubing Waterproof


    Model Number: SB-SBRS-(3X)G

    Working temperature: -45ºC ~ 125ºC

    Shrink temperature: 70ºC ~ 125ºC

    Shrink ratio: 3:1


    Structure:

    Dual Wall Adhesive-lined Polyolefin Heat Shrinkable Tubing Waterproof adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.


    Usage:

    Dual Wall Adhesive-lined Polyolefin Heat Shrinkable Tubing Waterproof with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire spices, breakouts, and connector-to-cable transitions.


    Standards:

    Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4


    Dimension:

    Inner Diameter

    As Supplied(mm)

    ID

    After Recovery(mm)

    Standard Package

    (m/roll)

    (mm)(inch)IDWhole Wall ThicknessAdhesive Thickness
    Φ2.43/32≥2.4≤0.800.85±0.150.40±0.10200
    Φ3.21/8≥3.2≤1.000.95±0.150.40±0.10200
    Φ4.83/16≥4.8≤1.601.10±0.150.40±0.10100
    Φ6.41/4≥6.4≤2.201.20±0.150.45±0.10100
    Φ7.95/16≥7.9≤2.701.35±0.150.50±0.10100
    Φ9.53/8≥9.5≤3.201.45±0.200.50±0.1550
    Φ12.71/2≥12.7≤4.201.70±0.200.50±0.151.22
    Φ15.05/8≥15.0≤5.201.80±0.200.55±0.151.22
    Φ19.13/4≥19.1≤6.302.00±0.200.55±0.151.22
    Φ25.41≥25.4≤8.502.10±0.250.55±0.151.22
    Φ30.01-1/4≥30.0≤10.202.20±0.250.60±0.151.22
    Φ39.01-1/2≥39.0≤13.502.40±0.250.60±0.151.22
    Φ50.02≥50.0≤17.002.70±0.250.80±0.151.22
    Φ64.02-1/2≥64.0≤21.003.00±0.300.80±0.201.22
    Φ76.03≥76.0≤25.003.00±0.301.00±0.201.22
    Φ90.03-1/2≥90.0≤30.003.00±0.301.00±0.201.22
    Φ1004≥100≤34.003.00±0.301.00±0.201.22
    Φ1255≥125≤42.003.00±0.301.00±0.151.22

    Technical data:

    PropertyTest MethodStandard
    Tensile Strength(MPa)ASTM D2671≥10.4
    ElongationASTM D2671≥300
    Tensile Strength after Aging(MPa)UL224 158℃*168hrs≥7.3
    Elongation after Aging(MPa)UL224 158℃*168hrs≥200
    Dielectric Strength(KV/MM)IEC243≥15
    Volume Resistivity(Ω.cm)ASTM D876≥1*1014

    Hot melt adhesive property:

    PropertyTest MethodStandard
    Water AbsorptionASTM D570≤0.2%
    Softening PointASTM E895℃
    Strength of Pearing(PE)ASTM D 1000120N/25mm
    Strength of Pearing(AL)ASTM D 100080N/25mm

    Package:

    1/8'' - 5/16'', 100 M/Spool;

    12.7'' - 5'', 1.22 M/PC.


    Sunbow statements:

    1) We promise our clients excellent quality, reasonable price, perfect service and on-time delivery. We are committed to becoming a globally-outstanding and recognized leader in insulation sleeving industry, a preferred and qualified supplier of world-class manufacture and a well-known enterprise all over the world;

    2) We promise all our products supplied are of high quality, environmental-friendly, safe and reliable. We always make our contribution to human and social harmony;

    3) We promise that all our products follow close to the line of all applicable laws, rules and regulations, and any other related requirements;

    4) We improve our equipment performance, make innovation in our technologies and upgrade our specifications continuously. We are keeping improving our products quality, saving energy, pursueing low-carbon economy and improving environmental-friendly and safe performance of the products;

    5) We are committed to providing our staffs with effective and comprehensive training and corresponding resources to improve their skills and their awareness of health, safety and environmental protection. We apply ourselves to improve our staffs' professional skills and quality to ensure that they can improve working performance and career competitiveness.

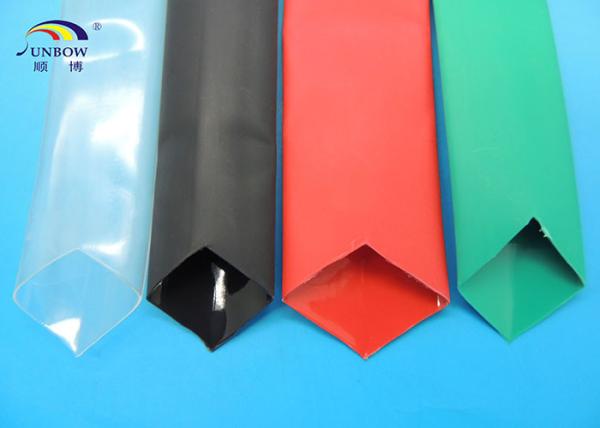

    Dual Wall Adhesive-lined Polyolefin Heat Shrinkable Tubing Waterproof

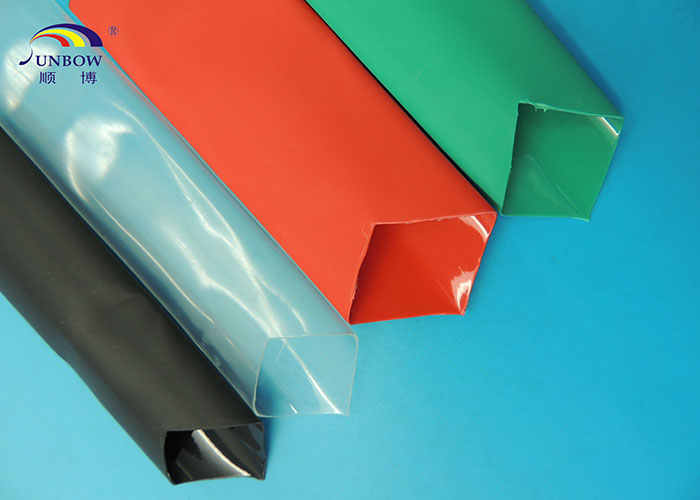

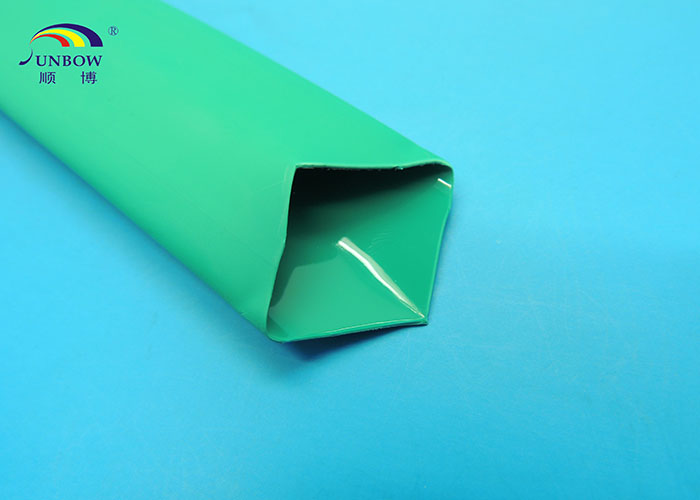

    Dual Wall Adhesive-lined Polyolefin Heat Shrinkable Tubing WaterproofDual Wall Adhesive-lined Polyolefin Heat Shrinkable Tubing Waterproof
