    E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv

    Ask Lasest Price
    Brand Name : Sunbow
    Model Number : SB-SGS-70
    Certification : UL , RoHS , Reach , CSA
    Price : USD0.07-13.4 per meter
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 600000 Meters / Month
    Delivery Time : 7~10 Working Days
    • Product Details
    • Company Profile

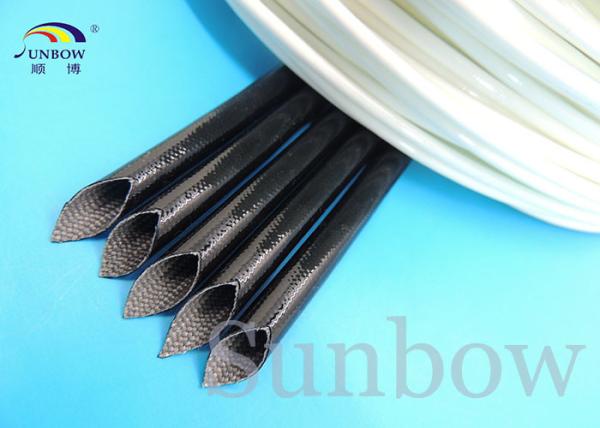

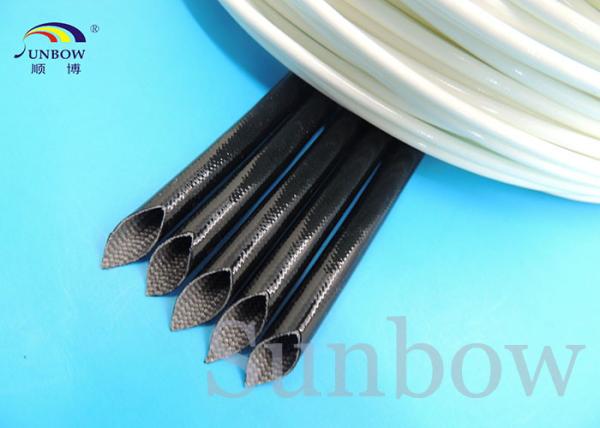

    E333177 Silicone High Temperature Fiberglass Sleeving Breakdown Voltage 7.0kv

    E333177 heat resistant Silicone Fiberglass Sleeving Breakdown Voltage 7.0kv


    Silicone rubber fiberglass sleeving

    Characteristic
    -Temperature class H
    -Continuous working temperature: 200°C
    -Dielecric strength: 4kv ,7kv, 10kv, 15kv
    -Flammability: self-extinguishing
    -Good mechanical resistance
    -Very flexible, watertight

    Colour & Package
    -Diameter: 0.5mm to 30mm
    -Colour: yellow, black, white, brick red, red Etc
    -Standard package:
    0.5 to 3mm—200M , 4 to 8mm---100M
    10 to 14mm---50M, 16 to 30mm---25M

    Application
    Electromechanical industry(motors, transformers,generators...), lighting industry, automotive...

    Features:

    1) Material: non-alkali glass fiber

    2) Subject to high temperature

    3) Minimum smoke is permitted

    4) External color: white


    Silicone Rubber Fiberglass Sleeving Specification


    Item

    Performance

    Note

    Dielectric Breakdown Voltage KV AC

    Minimum Average

    ≥7.0

    Before Aging

    Minimum Single Point

    ≥5.0

    Minimum Average

    ≥3.5

    6 Hrs* 245±5ºC

    245±5ºC 6Hrs Aging

    Minimum Single Point

    ≥2.5

    No Breakdown

    /

    1 KV in 2% Salt Water

    Thermal Endurance

    No Indication of Crack

    OK

    1440 Hrs* 235±5ºC

    235±5ºC 1440Hrs Aging

    Fire Resistance

    VW-1

    OK

    UL 1441



    Dimension


    Inside Diameter

    Wall Thickness (mm)

    Standard Package (m/roll)

    Nominal (mm)

    Tolerance (mm)

    φ0.5

    +0.2, -0.1

    ≥0.37

    200

    φ1.0

    +0.2, -0.1

    ≥0.37

    200

    φ1.5

    +0.2, -0.1

    ≥0.37

    200

    φ2.0

    +0.2, -0.1

    ≥0.37

    200

    φ2.5

    +0.3, -0.1

    ≥0.42

    200

    φ3.0

    +0.3, -0.1

    ≥0.42

    200

    φ4.0

    +0.3, -0.1

    ≥0.42

    200

    φ4.5

    +0.3, -0.1

    ≥0.51

    100

    φ5.0

    +0.3, -0.1

    ≥0.51

    100

    φ6.0

    +0.3, -0.1

    ≥0.51

    100

    φ7.0

    +0.3, -0.1

    ≥0.56

    100

    φ8.0

    +0.3, -0.1

    ≥0.56

    100

    φ9.0

    +0.3, -0.1

    ≥0.66

    100

    φ10.0

    +0.3, -0.1

    ≥0.66

    100

    φ12.0

    +1.0, -1.0

    ≥0.66

    50

    φ14.0

    +1.0, -1.0

    ≥0.66

    50

    φ16.0

    +1.0, -1.0

    ≥0.66

    50

    φ18.0

    +1.0, -1.0

    ≥0.66

    50

    φ20.0

    +1.0, -1.0

    ≥0.76

    25

    φ25.0

    +1.0, -1.0

    ≥0.76

    25

    φ30.0

    +1.0, -1.0

    ≥0.76

    25



    Silicone Rubber Fiberglass Sleeving
