    UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube

    Ask Lasest Price
    Brand Name : Sunbow
    Model Number : SB-RSFR-125H
    Certification : UL(UL No.: E360625), RoHS, Reach, ISO9001, TS16949
    Price : US$0.045 - 15.298 per meter
    Payment Terms : T/T, PayPal
    Supply Ability : 9000000 meter per year
    Delivery Time : 5 - 8 working days
    • Product Details
    • Company Profile

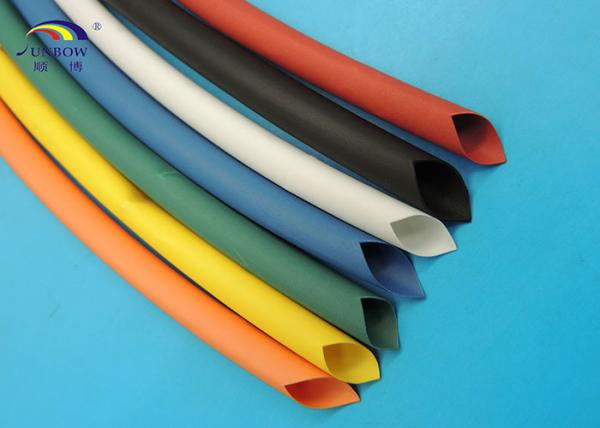

    UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube

    UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube


    Product description:

    UL Listed Flame Retardant Polyolefin Heat Shrink Tubing Heat Shrinkable Tube is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.


    Feature:

    1. flexible

    2. zero halogen

    3. flame retardant

    4. low smoke generation if burning

    5. continuous operating temperature: -45C - 125C

    6. shrink temperature: 84C - 120C

    7. RoHS compliant

    8. insulation, soft, quick shrink, stable performance


    Dimension:

    Inner

    Diameter

    As Supplied(mm)After Recovery(mm)Standard PackageApplication Range(mm)
    Inner DiameterWall ThicknessInner DiameterWall Thickness(m/spool)
    Φ0.60.9±0.20.20±0.05≤0.400.33±0.104000.4~0.7
    Φ0.81.1±0.20.20±0.05≤0.500.33±0.104000.6~0.8
    Φ1.01.5±0.20.20±0.05≤0.650.36±0.104000.75~0.9
    Φ1.52.0±0.20.20±0.05≤0.850.36±0.104000.95~1.4
    Φ2.02.5±0.20.23±0.05≤1.000.45±0.104001.1~1.8
    Φ2.53.0±0.20.23±0.05≤1.300.45±0.104001.35~2.3
    Φ3.03.5±0.20.23±0.05≤1.500.45±0.104001.6~2.7
    Φ3.54.0±0.20.23±0.05≤1.800.45±0.104001.85~3.2
    Φ4.04.5±0.20.25±0.05≤2.000.45±0.104002.1~3.6
    Φ4.55.0±0.20.28±0.05≤2.300.56±0.102002.35~4.0
    Φ5.05.5±0.20.28±0.05≤2.500.56±0.102002.6~4.5
    Φ6.06.5±0.20.28±0.05≤3.000.56±0.102003.1~5.4
    Φ7.07.5±0.30.28±0.05≤3.500.56±0.101003.7~6.3
    Φ8.08.5±0.30.30±0.08≤4.000.56±0.101004.2~7.2
    Φ9.09.5±0.30.30±0.08≤4.500.56±0.101004.7~8.0
    Φ1010.5±0.30.30±0.08≤5.000.56±0.101005.2~9.0
    Φ1111.5±0.30.30±0.08≤5.500.56±0.101005.7~10
    Φ1212.5±0.30.30±0.08≤6.000.56±0.101006.2~11
    Φ1313.5±0.30.30±0.08≤6.500.56±0.101006.7~12
    Φ1414.5±0.30.35±0.10≤7.000.70±0.101007.3~13
    Φ1515.5±0.40.35±0.10≤7.500.70±0.101007.8~14
    Φ1616.5±0.40.35±0.10≤8.000.70±0.101008.3~15
    Φ1717.5±0.40.35±0.10≤8.500.70±0.101008.8~16
    Φ1819.0±0.50.35±0.10≤9.000.70±0.101009.3~17
    Φ2022.0±0.50.35±0.10≤10.000.83±0.1510010.4~19
    Φ2224.0±0.50.40±0.12≤11.000.83±0.1510011.4~21
    Φ2526.0±0.50.40±0.12≤12.500.90±0.155012.8~24
    Φ2829.0±0.50.45±0.12≤14.000.90±0.155014.4~29
    Φ3031.5±1.00.45±0.12≤15.001.00±0.155016~29
    Φ3536.5±1.00.45±0.12≤17.501.00±0.155018~34
    Φ4041.5±1.00.45±0.12≤20.001.00±0.155021~39
    Φ4546.5±1.00.50±0.15≤22.51.00±0.152523.5~44
    Φ50≥500.50±0.15≤25.01.10±0.152526~49
    Φ60≥600.60±0.15≤30.01.20±0.152535~55
    Φ70≥700.65±0.15≤35.01.30±0.202540~65
    Φ80≥800.65±0.15≤40.01.30±0.202545~75
    Φ90≥900.65±0.15≤45.01.30±0.202550~85
    Φ100≥1000.65±0.20≤50.01.30±0.202555~95
    Φ120≥1200.65±0.20≤60.01.30±0.202565~115
    Φ150≥1500.65±0.20≤70.01.30±0.202580~145
    Φ180≥1800.65±0.30≤90.01.30±0.302595~175
    Φ210≥2100.65±0.30≤105.01.30±0.3025110~205
    Φ230≥2300.65±0.30≤115.01.30±0.3025120~225
    Φ250≥2500.65±0.30≤125.01.30±0.3025130~240

    Technical data:

    PropertyUnitTest MethodStandard
    Tensile StrengthMPA≥10.4(Before Aging)GB/T 1040
    ≥7.3(After Aging)158ºC*168hrs
    Breakage Elongation (%)%≥200(Before Aging)GB/T 1040
    ≥100(After Aging)158ºC*168hrs
    Heat Shock-No Sticking & No Cracking250ºC*4hrs
    Cold Blend-No Cracking-30ºC*4hrs
    Breakdown StrengthKV/mm≥15GB/T 1408
    Dielectric Withstand600V-PassNo Breakdown for 2500V, 60s
    300V-PassNo Breakdown for 1500V,60s
    Volume ResistivityΩ. cm≥1×1014GB/T 1410
    Corrosion Performance-pass158ºC*168hrs
    Copper Stability-pass158ºC*168hrs
    Flammability-passVW-1

    Color: black, red, yellow, blue, green.
